Diaphragm pump ZETA 140 serieswaterstationaryindustrial
Add to favorites
Compare this product
Characteristics
- Technology
- diaphragm
- Fluid
- water
- Mobility
- stationary
- Domain
- industrial, chemical
- Applications
- sewage, washing, firefighting, spray, descaling
- Material
- aluminum, plastic
- Protection level
- standard, reinforced
- Other characteristics
- mechanical, double, flow, low-pressure
- Flow
Max.: 135 l/min
(35.66323 us gal/min)Min.: 81.9 l/min
(21.63569 us gal/min)- Pressure
Max.: 290 bar
(4,206.094 psi)Min.: 0 bar
(0 psi)- Power
Max.: 4.9 kW
(6.66 hp)Min.: 0.6 kW
(0.82 hp)- Length
340 mm
(13 in)- Width
319 mm
(12.56 in)- Height
319 mm
(12.56 in)- Weight
17.6 kg, 17.8 kg, 18 kg, 18.9 kg
(38.8 lb, 39.24 lb, 39.68 lb, 41.67 lb)
Description

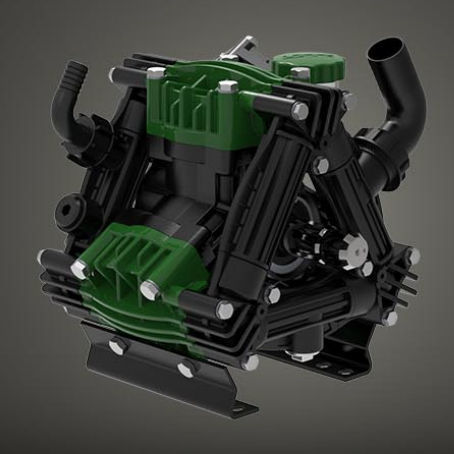

The 3-diaphragms pump ZETA 140 produces a flow of 135 l/min and operates at a maximum pressure of 20 bar. It is available with single or double splined/cylindrical shaft.
Semi-Hydraulic diaphragm pump with aluminium plastic coating heads and nylon reinforced manifolds suitable for chemical products, die casted aluminum crankcase with cataphoresis coating resistant to corrosion, valves with spherical design to increase the volumetric efficiency, pistons with ring to ensure less wear of the pumping parts.
It is equipped as standard with the new GREENTECH diaphragm, made of an innovative material that reduces the deformation caused by use and improves the mechanical and chemical resistance.
