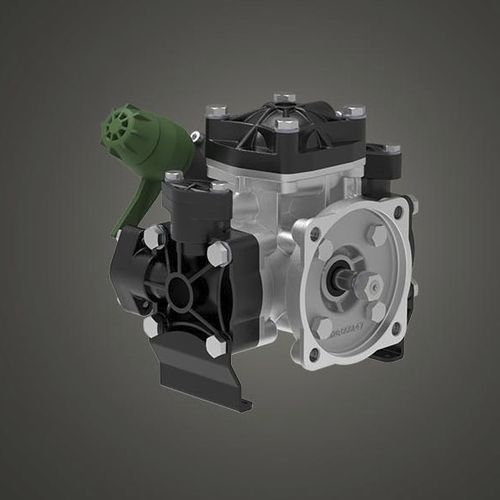

Water pump IOTA seriesdiaphragmstationaryindustrial
Add to favorites
Compare this product
Characteristics
- Fluid
- water
- Technology
- diaphragm
- Mobility
- stationary
- Domain
- industrial, chemical
- Applications
- sewage, control, washing, firefighting, spray, descaling, misting
- Material
- aluminum
- Other characteristics
- flow, low-pressure, electric and hydraulic
- Flow
Max.: 24 l/min
(6.34013 us gal/min)Min.: 15.9 l/min
(4.20034 us gal/min)- Pressure
Max.: 20 bar
(290.075 psi)Min.: 0 bar
(0 psi)- Power
Max.: 0.8 kW
(1.09 hp)Min.: 0.1 kW
(0.14 hp)- Length
192 mm
(8 in)- Width
216.5 mm, 232.5 mm
(8.52 in, 9.15 in)- Height
181 mm
(7.13 in)- Weight
3.9 kg, 4.2 kg
(8.6 lb, 9.26 lb)
Description
The pumps of the IOTA series, produce a flow from 19 to 24 l/min and operate at max. 20 bar pressure.
They are generally driven by engines, electric and hydraulic motors.
The pumps of this series are suitable for lawn care spraying machines, pest control and disinfection equipments, misting systems
The 2-diaphragms pump IOTA 20 produces a flow of 19 l/min and operates at a maximum pressure of 20 bar. It is available with single cylindrical shaft.
Semi-Hydraulic diaphragm pump with aluminium anodized heads suitable for chemical products, die casted aluminum crankcase .
