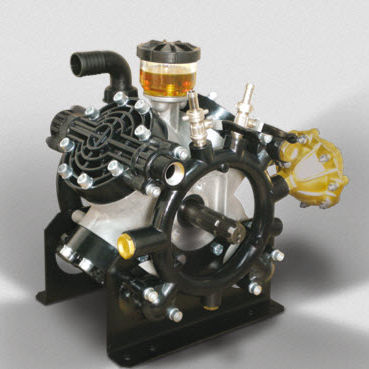

Diaphragm pump OMEGA 170 TS 2Cwaterstationaryindustrial
Add to favorites
Compare this product
Characteristics
- Technology
- diaphragm
- Fluid
- water
- Mobility
- stationary
- Domain
- industrial, chemical
- Applications
- high-pressure, sewage, washing, firefighting, spray, descaling
- Material
- aluminum
- Protection level
- standard
- Other characteristics
- mechanical, double, flow
- Flow
Max.: 177 l/min
(46.75845 us gal/min)Min.: 128.6 l/min
(33.97253 us gal/min)- Pressure
Max.: 50 bar
(725.189 psi)Min.: 0 bar
(0 psi)- Power
Max.: 15.6 kW
(21.21 hp)Min.: 1 kW
(1.36 hp)- Length
443 mm
(17 in)- Width
379.4 mm
(14.94 in)- Height
436 mm
(17.17 in)- Weight
45.7 kg, 46 kg
(100.75 lb, 101.41 lb)
Description
The 4-diaphragms pump OMEGA 170 produces a flow of 177 l/min and operates at a maximum pressure of 50 bar. It is available with double splined shaft.
Semi-Hydraulic diaphragm pump with anodized aluminium heads/manifolds suitable for chemical products, die casted aluminum crankcase , valves with spherical design to increase the volumetric efficiency, pistons with ring to ensure less wear of the pumping parts.
It is equipped as standard with the new GREENTECH diaphragm, made of an innovative material that reduces the deformation caused by use and improves the mechanical and chemical resistance.
