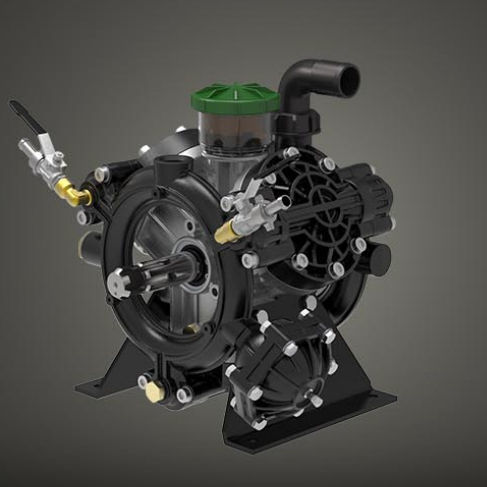

Diaphragm pump OMEGA 135 TS 2Cwaterstationaryindustrial
Add to favorites
Compare this product
Characteristics
- Technology
- diaphragm
- Fluid
- water
- Mobility
- stationary
- Domain
- industrial, chemical
- Applications
- high-pressure, sewage, washing, firefighting, spray, descaling
- Material
- aluminum
- Protection level
- standard
- Other characteristics
- mechanical, double, flow
- Flow
Max.: 137 l/min
(36.19157 us gal/min)Min.: 96.3 l/min
(25.43977 us gal/min)- Pressure
Max.: 580 bar
(8,412.189 psi)Min.: 0 bar
(0 psi)- Power
Max.: 9.8 kW
(13.32 hp)Min.: 0.7 kW
(0.95 hp)- Length
442 mm
(17 in)- Width
365 mm
(14.37 in)- Height
391 mm
(15.39 in)- Weight
27 kg, 27.1 kg, 28.5 kg
(59.52 lb, 59.75 lb, 62.83 lb)
Description
The 3-diaphragms pump OMEGA 135 produces a flow of 137 l/min and operates at a maximum pressure of 40 bar. It is available with double splined shaft.
Semi-Hydraulic diaphragm pump with anodized aluminium heads/manifolds suitable for chemical products, die casted aluminum crankcase , valves with spherical design to increase the volumetric efficiency, pistons with ring to ensure less wear of the pumping parts.
It is equipped as standard with the new GREENTECH diaphragm, made of an innovative material that reduces the deformation caused by use and improves the mechanical and chemical resistance.
