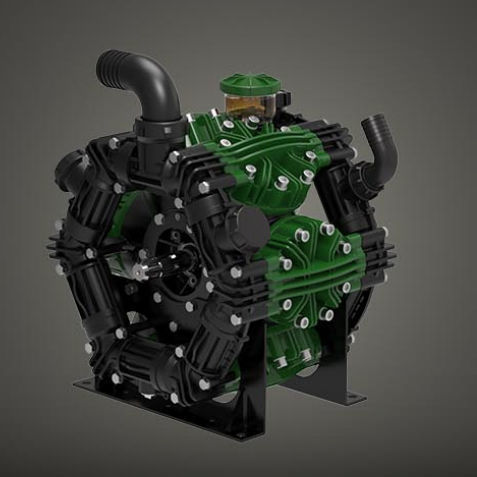

Diaphragm pump ZETA 350 serieswaterhydraulic motorstationary
Add to favorites
Compare this product
Characteristics
- Technology
- diaphragm
- Fluid
- water
- Operation
- hydraulic motor
- Mobility
- stationary
- Domain
- industrial, chemical
- Applications
- sewage, washing, firefighting, spray, descaling
- Material
- aluminum, plastic
- Protection level
- standard, reinforced
- Other characteristics
- mechanical, double, low-pressure
- Flow
Max.: 400 l/min
(105.66882 us gal/min)Min.: 240 l/min
(63.40129 us gal/min)- Pressure
Max.: 290 bar
(4,206.094 psi)Min.: 0 bar
(0 psi)- Power
Max.: 15.1 kW
(20.53 hp)Min.: 1.8 kW
(2.45 hp)- Length
517 mm
(20 in)- Width
381 mm
(15 in)- Height
580 mm
(22.83 in)- Weight
68.1 kg, 70 kg, 70.1 kg
(150.13 lb, 154.32 lb, 154.54 lb)
Description
The 6-diaphragms pump ZETA 350 produces a flow of 345 l/min and operates at a maximum pressure of 20 bar. It is available with double splined shaft.
Semi-Hydraulic diaphragm pump with aluminium plastic coating heads and nylon reinforced manifolds suitable for chemical products, die casted aluminum crankcase with cataphoresis coating resistant to corrosion, valves with spherical design to increase the volumetric efficiency, pistons with ring to ensure less wear of the pumping parts.
It is equipped as standard with the new GREENTECH diaphragm, made of an innovative material that reduces the deformation caused by use and improves the mechanical and chemical resistance.
The pump is also available with MI shaft type (hollow shaft) to be directly coupled to hydraulic motor.
