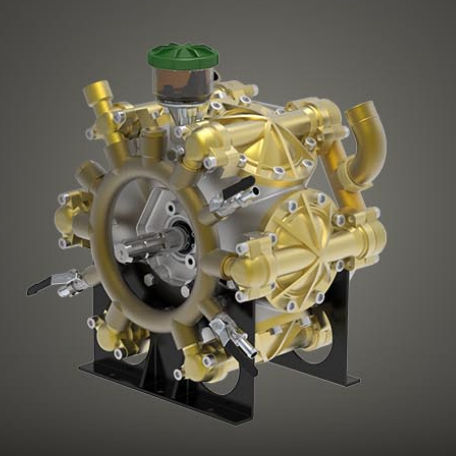

Diaphragm pump BETA 200 TS 2Cwaterstationaryindustrial
Add to favorites
Compare this product
Characteristics
- Technology
- diaphragm
- Fluid
- water
- Mobility
- stationary
- Domain
- industrial, chemical
- Applications
- high-pressure, sewage, washing, firefighting, spray, descaling
- Material
- aluminum, brass
- Protection level
- standard, reinforced
- Other characteristics
- mechanical, double, flow
- Flow
Min.: 150.2 l/min
(39.67864 us gal/min)Max.: 243 l/min
(64.19381 us gal/min)- Pressure
Min.: 0 bar
(0 psi)Max.: 725 bar
(10,515.236 psi)- Power
Min.: 1.2 kW
(1.63 hp)Max.: 19.3 kW
(26.24 hp)- Length
408 mm
(16 in)- Width
378 mm
(14.88 in)- Height
487 mm
(19.17 in)- Weight
72 kg
(158.73 lb)
Description
The 6-diaphragms pump BETA 200 produces a flow of 218 l/min and operates at a maximum pressure of 50 bar. It is available with double splined shaft.
Semi-Hydraulic diaphragm pump with reinforced brass heads/manifolds suitable for chemical products, die casted aluminum crankcase , valves with spherical design to increase the volumetric efficiency, pistons with ring to ensure less wear of the pumping parts.
It is equipped as standard with the new GREENTECH diaphragm, made of an innovative material that reduces the deformation caused by use and improves the mechanical and chemical resistance.
