Horizontal bagging machine FR 500
HFFSservo-drivenautomatic

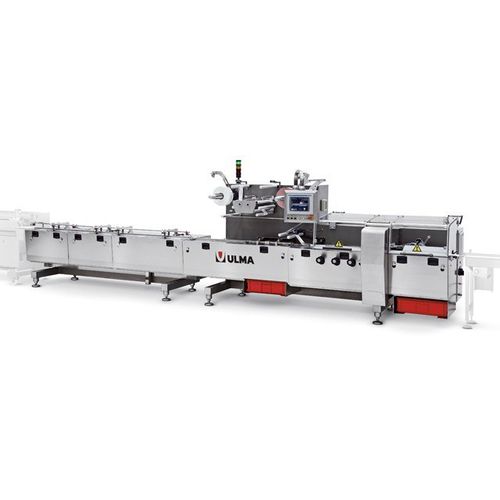

Horizontal bagging machine - FR 500 - ULMA Packaging - HFFS / servo-driven / automatic
Horizontal bagging machine - FR 500 - ULMA Packaging - HFFS / servo-driven / automatic
Horizontal bagging machine - FR 500 - ULMA Packaging - HFFS / servo-driven / automatic - image - 2
Horizontal bagging machine - FR 500 - ULMA Packaging - HFFS / servo-driven / automatic - image - 3
Horizontal bagging machine - FR 500 - ULMA Packaging - HFFS / servo-driven / automatic - image - 4
Horizontal bagging machine - FR 500 - ULMA Packaging - HFFS / servo-driven / automatic - image - 5
Horizontal bagging machine - FR 500 - ULMA Packaging - HFFS / servo-driven / automatic - image - 6
Add to favorites
Compare this product

Characteristics

Type
horizontal
Technology
HFFS
Operational mode
automatic, servo-driven
Packaging
pillow bag
Application domain
for the food industry
Product applications
for solids
Other characteristics
high-speed, with servo-motor, 3-seal
Throughput

Max.: 1,000 p/min

Min.: 0 p/min

Description

DESCRIPTION
The FR 500 is a fully electronic horizontal Flow Wrapper (HFFS) designed for medium to high speed production and integration into packaging lines. It produces three-seal pillow packs and is configured with feeders and autoloaders suitable for bakery and chocolate products.

TECHNICAL CHARACTERISTICS
  • Stainless steel construction with cantilever design.
  • Multi-axis electronic control synchronizing main machine movements.
  • Four independent servomotors for rotary jaws, sealing rollers, infeed conveyor and motorized reel holder.
  • Four pairs of sealing rollers.
  • Automatic reel change and pneumatic reel fixation.
  • 10" colour touch screen for parameter adjustment, diagnostics and reporting.
  • Infeed conveyor with chain on one side.
  • Top motorized belt at exit.
  • Rejector for empty or poorly sealed packs.
  • Complete range of infeed conveyors and feeders depending on product and application.


MAIN OPTIONAL ELEMENTS
  • Printing/encoding system.
  • Cold plate sealing rollers.
  • Overhead and side guiding devices.
  • Aspiration (vacuum) system between rollers.
  • "D-Cam" type transverse jaw.
  • Gusseting/folding device (mechanical or air).


CHARACTERISTICS / TECHNICAL SPECIFICATIONS
  • Maximum speed: up to 1000 packs/min (depending on product and configuration).
  • Machine type: Horizontal Flow Wrapper (HFFS) producing three-seal pillow packs.
  • Control: multi-axis electronic control with synchronized main movements.
  • Drive: four independent servomotors for key functions.
  • Sealing: four pairs of sealing rollers; optional cold plate rollers available.
  • Film handling: automatic reel change, motorized reel holder, pneumatic fixation.
  • HMI: 10" colour touch screen for settings, diagnostics and reporting.
  • Infeed/exit: infeed conveyor (chain on one side) and top motorized belt at exit; range of infeed conveyors available.
  • Quality control: empty/poorly sealed pack rejector; optional aspiration between rollers.
  • Applications: especially suited for bakery and chocolate products; designed for integration in medium and high speed production lines.
