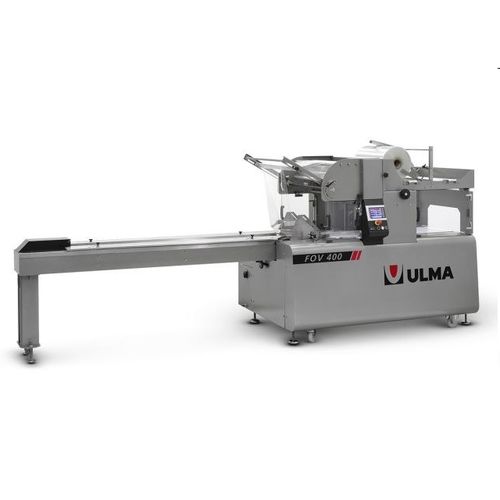

Horizontal bagging machine FOV 400

flow-packHFFSservo-driven

Description
The FOV 400 is an automatic horizontal flow-pack (HFFS) wrapper designed for shrink-pack or film-wrap applications producing an overlapped longitudinal seal. Developed by ULMA Packaging engineering teams, the machine combines a durable steel structure with high-format flexibility to handle a wide variety of products and materials with fast changeovers.

Technical characteristics

• Automatic machine controlled by an Industrial PC based motion control system for flexible operation.
• Robust painted steel frame.
• Pusher-type in-feed conveyor that transports products and automatically synchronizes their position with the cross-sealing head.
• Double reel holder accommodating film up to 850 mm wide and rolls up to 350 mm diameter.
• Flexible forming box to adapt the film tube to different product shapes.
• Longitudinal overlap sealing by ionizer for shrink applications or by hot-seal system for film-wrapping.
• Cross sealing via Long-Dwell sealing head with 400 mm wide sealing jaws driven by a brushless servomotor.
• Standard "No product - no bag" function to prevent empty bags while the in-feed conveyor runs continuously.
• Touch screen operator panel with parameter storage and intuitive menus for quick format changes.

Main optional elements

• Mixed-film version to run shrinkable polyolefin and LDPE on the same machine (suitable for contract packers).
• Print registration photocell for printed-film alignment.
• Automatic feeding and indexing systems for regular products.
• Various in-feed conveyor designs in multiple lengths to fit the required layout.
• Wide range of friction feeders, labellers, printing systems and other peripheral devices.

Characteristics / technical specifications

• Model: FOV 400
• Control: Industrial PC based motion control with touch screen
• Frame: painted steel
• In-feed: pusher type conveyor synchronized to cross sealing head
• Reel holder: up to 850 mm film width, roll diameter up to 350 mm
• Forming box: flexible, adaptable to product shapes
• Longitudinal sealing: ionizer (shrink) or hot-seal system (film-wrap)
• Cross sealing: Long-Dwell head, 400 mm sealing jaws, brushless servomotor
• Standard function: "No product - no bag"
• Operator interface: touch screen with parameter storage
• Available optionals: mixed film version (polyolefin + LDPE), print registration, automatic feeders, various conveyors, friction feeders, labellers, printers and peripherals
