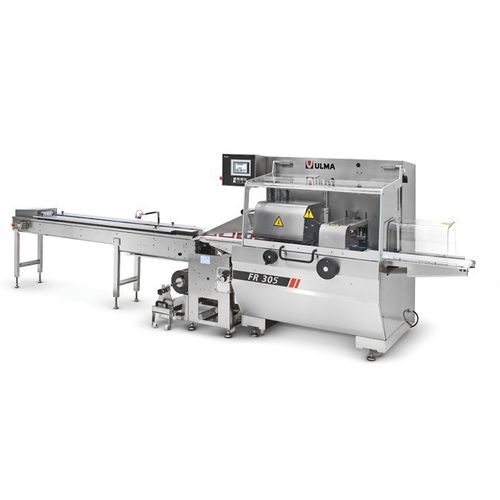

Horizontal bagging machine FR 305

HFFSrotarypillow bag

Summary
Horizontal Flow Wrapper (HFFS) producing a three-seal pillow pack. Suited for bakery, biscuits, chocolates and confectionery industries.

Description
The new FR 305 is the result of ULMA’s commitment to innovation and technological development. Developed within the range of rotary jaw packaging machines, the FR 305 replaces previous bottom-film rotary jaw models, combining proven experience and reliability with the latest technological advances. The machine features a cantilever ergonomic design for easier cleaning and sanitizing, and high flexibility for format changeovers thanks to an industrial PC electronic platform. These characteristics make the FR 305 suitable for packing irregular or difficult-to-transfer products.

Technical features

• Electronic packaging machine driven by independent, electronically synchronised motors.
• Cantilever construction to reduce dirt accumulation and allow easy access for cleaning and maintenance.
• Operating direction: Left to Right (standard).
• In-feed conveyor: standard 2 m length (configurable).
• Easy-access reel holder to simplify loading of heavy rolls.
• Adjustable film folding box (former).
• Longitudinal sealing by film feeding and sealing rollers, with height adjustment system for quick settings.
• Cross sealing performed by rotary sealing jaws with an electronic overload safety switch.
• Machine parameters (bag length, pusher position, etc.) adjustable from touch screen.
• Includes a 5" monochrome touch screen for user/machine interface, parameter settings, machine status and fault diagnostics.
• Control allows data storage for up to 99 different machine set-ups.

Main optional devices

• Various in-feed conveyor designs and variable lengths to fit layout requirements.
• Wide range of automatic feeding systems.
• "No Product – No Bag" function.
• "Misplaced product safety" function.
• Print registration photocell.
• Right-to-Left orientation (option).
• Stainless steel version suitable for wet environments.
• Shrink-film version.
• D-cam type jaw version for laminated films.
• Wide range of printing equipment.

Characteristics / technical specifications

• Machine type: Horizontal Flow Wrapper (HFFS), rotary jaw packaging machine.
• Pack format: three-seal pillow pack.
• Target industries: bakery, biscuits, chocolates and confectionery.
• Construction: cantilever design for hygiene and easy maintenance.
• Drive: independent electronically synchronised motors.
• Standard in-feed length: 2 m (variable as option).
• User interface: 5" monochrome touch screen; industrial PC platform for format changeover flexibility.
• Storage: up to 99 machine setups can be stored.
• Sealing: longitudinal sealing by rollers; cross sealing by rotary jaws with overload safety.
• Optional upgrades: stainless steel wet-environment version, shrink-film version, D-cam jaws, printing and registration systems, varied feeding and conveyor configurations.
