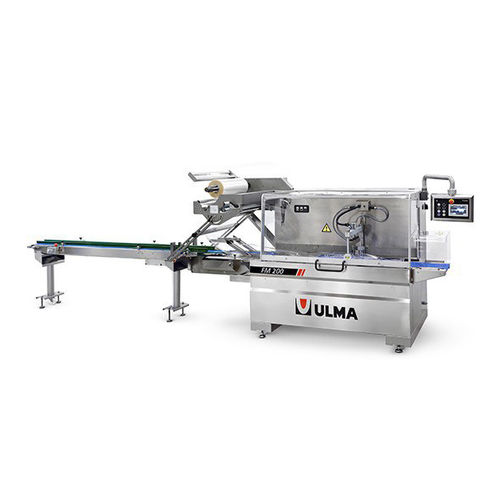

Horizontal bagging machine FM 200

flow-packHFFSfor MAP packaging

Overview
Horizontal Flow Wrapper (HFFS) that produces a hermetic three-seal pillow pack for fresh food under Modified Atmosphere Packaging (MAP). Medium-high performance level.

Description
FM 200 is designed to pack fresh and perishable products in Flow-Pack (pillow) bags with three seals. The FM 200 family provides improved performance and simplified operation via a touch screen control, and is available in configurations for bottom- or top-reel film. The machine is built on a stainless steel cantilever frame to facilitate cleaning and access to mechanical and electrical components.

Key features

• Independent electronically synchronised motors for precise motion control.
• Stainless steel cantilever frame to reduce dirt accumulation and enable hygienic cleaning.
• Standard 2 m stainless steel in-feed conveyor (various lengths optional).
• Easy-access reel holder with motorised film unwinding for handling heavy rolls.
• Motorised longitudinal sealing height adjustment for quick setup.
• Box-motion cross sealing station with over-pressure system to ensure hermetic seals.
• Sealing head with independent motor to optimise cycle time and allow short, accurate package lengths.
• Touch screen control panel with product-specific parameter storage (bag length, speed, sealing time, etc.).
• Standard safety functions: No product - No bag; mispositioned product detection.

Main optional devices

• Barrier laminated film versions (OPA/PE or similar).
• BDF shrink barrier film version.
• Print registration photocell.
• On-line gas analysis systems.
• Varied in-feed conveyor designs and lengths to fit layouts.
• Printing and coding equipment.

Technical specifications

• Model: FM 200
• Machine type: Horizontal Flow Wrapper (HFFS) producing three-seal pillow packs
• Application: Fresh food, suitable for Modified Atmosphere Packaging (MAP)
• Performance level: Medium-high
• Frame: Stainless steel cantilever format for hygiene and easy access
• Drive: Independent electronically synchronised motors
• In-feed conveyor: Standard 2 m stainless steel (options available)
• Film handling: Easy-access reel holder with motorised unwinding
• Sealing: Motorised longitudinal height adjustment; independent sealing head motor; box-motion cross sealing with over-pressure
• Control: Touch screen panel with product-specific settings
• Standard safety: No product - No bag; mispositioned product detection
• Optional: Barrier films (OPA/PE), BDF shrink, print registration, on-line gas analysis, varied conveyors, printing equipment
