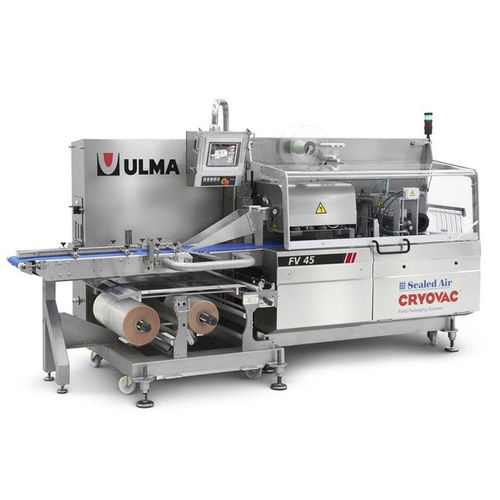

Horizontal bagging machine FV 45

flow-packHFFSvacuum

Overview
Horizontal FLOW-VAC® type flow pack wrapper (HFFS) FV 45 that forms vacuum bags from a single shrink and barrier film (CRYOVAC®). Suitable for all types of food products. Medium-high performance level.

Description
The FLOW-VAC® system, developed by ULMA Packaging in collaboration with SEALED AIR, is a lower-reel HFFS machine feeding film from below product level to avoid seal contamination. The vacuum bag is formed around the product with a hermetic longitudinal seal; automated product detection indexes each item for a high-quality transverse seal. Excess longitudinal seal material is removed via a film scrap removal system. The FV 45 operates synchronized with incoming product speed and adapts to line variations. The electronic platform is PC-based with an industrial PC, touch screen and Windows-based graphic software; modem link options available. Designed and manufactured in stainless steel to meet hygienic requirements of the food industry.

Options

• Right-to-left machine versions.
• Various date-coding and coding systems.
• Photocell for printed-film registration.
• Exit conveyor (multiple options).
• Infeed conveyor (multiple options).

Technical specifications

• Model: FV 45 (FLOW-VAC®)
• Machine type: Horizontal flow pack wrapper (HFFS), lower-reel
• Packing method: Vacuum bag formed around product; hermetic longitudinal and transverse seals
• Film: Single shrink and barrier film (CRYOVAC®) fed from below product level
• Performance: Medium-high; operates at incoming product speed and adapts to variations
• Sealing: High-quality hermetic longitudinal and transverse seals; longitudinal scrap removal
• Control: PC-based electronic platform; industrial PC with touch screen; Windows graphic software; modem link options
• Construction: Stainless steel, hygienic design for food industry
