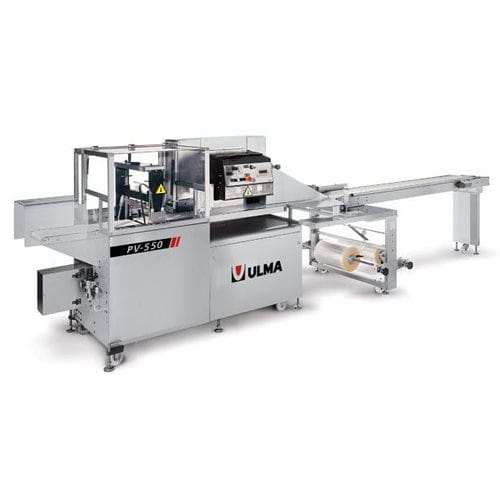

Horizontal bagging machine PV-550

HFFSautomaticpillow bag

Overview
The PV-550 is a horizontal Flow Wrapper (HFFS) family designed to produce three-seal pillow packs for irregular or hard-to-drag products. Film coil is positioned at the lower part of the machine. Available in PV-550 LSH I X and PV-550 SPH I X versions; optional MAP (modified atmosphere packaging) capability.

Main features

• Construction in stainless steel and anticorrosive-treated materials.
• Standard working direction: right to left (other directions available).
• PV-550 LSH I X: cross-welding with horizontal fillet clamp; longitudinal weld using three pairs of rollers for welding and film transport.
• PV-550 SPH I X: cross-welding with thread-type welding clamp; thread-type longitudinal welding with conic welding and cutting rollers; motorized film remnant winding.
• 550 mm wide LSH-type cross-welding head.
• Motorized height adjustment of the longitudinal welding system.
• Double auto-centring coil support.
• Standard 2 m feeding unit; other lengths available.
• Mould with stretchable former and adjustable package length according to product.
• Detection and safety functions: No product – No package; detection of mispositioned products in clamps.
• LCD screen for parameter adjustment, diagnosis and machine status; recipe memory for up to 20 products.

Optional

• Different types and lengths of feeding units.
• Photocell for printed film centring.
• Gas injection system for MAP packing (PV-550 LSH I X).
• Waste oxygen analyser (PV-550 LSH I X).
• Various automatic feeding systems.
• Version adapted for LDPE film.

Applications
Suitable for packaging irregular, bulky or hard-to-drag products in sectors such as general food, agriculture, meat processing and dairy. Adaptable to specific formats and production requirements.

Technical specifications

• Model family: PV-550 LSH I X / PV-550 SPH I X.
• Machine type: Horizontal Flow Wrapper (HFFS), three-seal pillow pack.
• Film coil position: lower part of the machine.
• Cross-welding head width (LSH): 550 mm.
• Longitudinal welding: three pairs of rollers (LSH) or thread-type conic rollers with cutting and motorized remnant winding (SPH).
• Feeding unit length: 2 m standard (other lengths optional).
• Double auto-centring coil support; motorized height regulation of longitudinal welding system.
• Mould: stretchable former; package length adjustable to product.
• Controls: LCD, diagnostics and storage for up to 20 product recipes.
• Optional MAP: gas injection and residual oxygen analyser (LSH).
