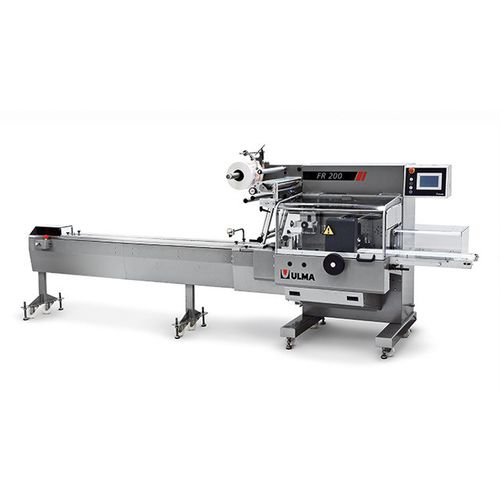

Horizontal bagging machine FR 200

HFFSpillow bagfor the food industry

Overview
Horizontal flow wrapper (HFFS) FR 200 for three‑seal pillow packs. Designed for medium‑to‑high production rates, the FR 200 integrates ULMA engineering, advanced motion control and a 7" UPC Industrial PC for enhanced axis control and machine performance. The machine features a sanitary cantilever construction, intuitive HMI and ergonomic access to simplify operation and maintenance.

Technical specifications

• Cantilever construction for easy sanitation and service access.
• Standard operating direction: left to right (right‑to‑left optional).
• Rotary cross‑sealing jaws for consistent transverse seals.
• Three pairs of rollers for longitudinal film pulling, sealing and folding.
• Self‑centring reel holder with brake system.
• Standard infeed conveyor length: 2 m (6 1/2').
• Adjustable film folding box for different film formats.
• Motion and machine control via 7" UPC Industrial PC.
• HMI: 7" colour touchscreen with graphical parameter setting, alarm visualization and Ethernet for remote access.

FR 200 I P - 'PEPPER WRAPPING'

• Intermittent version specifically configured to pack groups of peppers in combination with a weigher, enabling variable‑length packages.
• Special infeed conveyor with one belt and two pushers adapted for peppers.
• Bag length regulated by product length measurement using a photoelectric sensor on the infeed conveyor.
• Also supports fixed bag length mode and printed‑film registration centering.
• Possible to adapt the machine for tray packing.

Main options

• Automatic tray feeder.
• Different types and lengths of infeed conveyors (continuous‑run versions).
• Function 'No product - No bag'.
• Function 'Misplaced product - Double bag'.
• Photoelectric sensor for centering printed film (continuous run).
• Double self‑centering film roll holders.
• Right‑to‑left oriented machine.
• Stainless steel model for wet environments.

Characteristics / technical specifications

• Model: FR 200.
• Machine type: Horizontal flow wrapper (HFFS) - three‑seal pillow pack.
• Construction: Cantilever design for hygiene and easy cleaning.
• Operating direction: left → right (option right → left).
• Sealing: rotary cross sealing jaws; 3 pairs of longitudinal rollers.
• Film handling: self‑centring reel holder with brake; adjustable film folding box; optional photoelectric centering.
• Infeed: standard 2 m conveyor; optional variants for peppers and trays.
• Control: 7" UPC Industrial PC; 7" colour touchscreen HMI; Ethernet remote interaction.
• Special versions: FR 200 I P for pepper wrapping (variable length, weigher integration, tray packing possible).
• Options: automatic tray feeder, 'No product - No bag', 'Misplaced product - Double bag', double roll holders, stainless steel version.
