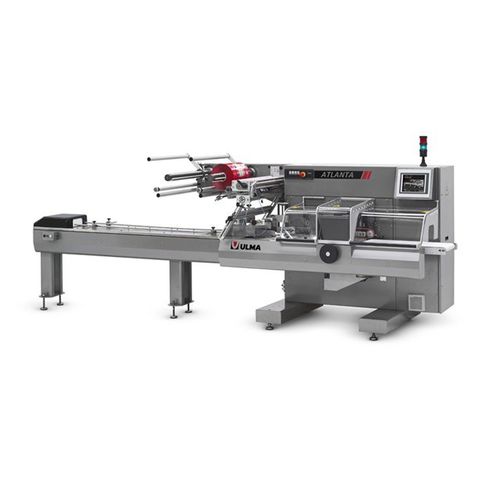

Horizontal bagging machine ATLANTA HI-TECH

flow-packHFFS3-seal

DESCRIPTION
ATLANTA HI-TECH is ULMA's highest-technology horizontal flow-pack (HFFS) model. It integrates a multi-shaft electronic control that synchronises the three main shafts, delivering flexibility for product changeovers, precise machine dynamics and straightforward integration with automatic or semi-automatic feeders. The machine design emphasises hygiene, accessibility for maintenance and format adaptability.

MAIN FEATURES

• Multi-shaft electronic control synchronising clamps, rollers and feeding unit.
• Three independent drives for clamps, rollers and infeed.
• Vertical plate construction for improved cleaning and hygiene.
• Easy access to mechanical and electronic components for maintenance.
• Working direction: left to right (standard).
• Rotary cross-welding clamps with electronic force limiter.
• Three pairs of longitudinal welding and pulling rollers with pneumatic opening.
• Self-centring motor-driven reel holder with lever brake (optional independent drive and automatic reel change).
• Standard 2 m feeding unit; alternative lengths available.
• Stretchable former/mould for format adaptation.
• Package length and elliptical cutting speed adjustable from touchscreen; parameter memory for up to 50 products.

OPTIONAL

• Various feeder types and lengths.
• Photocell for printed film centring.
• Product presence and position detection functions (no product - no bag; misposition protection).
• Motor-driven reel support with independent drive; automatic reel change.
• Motorised cross-weld head height adjustment.
• 12" colour screen on industrial PC with integrated temperature control.
• Different automatic feeding systems; left-hand version; stainless version for wet environments.
• Versions for shrinkable polyolefins and DC-type clamp.

TECHNICAL SPECIFICATIONS

• Type: Horizontal flow-pack (HFFS) with three-seal packaging.
• Control: Multi-shaft electronic synchronisation of three main shafts.
• Drives: Three independent motors for clamps, rollers and feeding unit.
• Feeding unit: Standard 2 m; other lengths optional.
• Welding: Rotary cross-weld clamps and three pairs of longitudinal weld rollers with pneumatic opening.
• User interface: Touchscreen for parameter adjustment, diagnostics and recipe memory up to 50 products.
• Options: Photocell for printed film, motorised reel support, automatic reel change, various feeders, stainless and left-hand versions.
