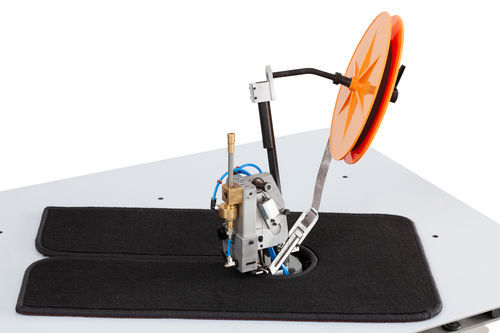

Single-needle carpet overedging machine TITAN 2500AHC

single-thread3-threadfor automotive applications

Product overview
The TITAN 2500AHC is an overedging machine designed for edging and finishing carpets used in automotive, aircraft and marine interiors.

Description
The machine is engineered to sew external and internal curves with small radii. It is equipped as standard with a pneumatic footlift and a tension opener to facilitate material handling and maintain stitch consistency during sewing operations.

Key features

• Speed: 2800 rpm
• Stitch width: 10 mm
• Maximum thickness capacity: 10 mm
• Fabric feed type: Bottom feed
• Number of needles: 1

Options strongly advised

• RPE/2500: external density adjuster to change number of stitches
• TA/2500: AHC upper table for improved handling
• FH/2500: oil filter
• SET 30566: tape guide
• MEM/2500: electronic motor for precise control
• NCV/2500: needle cooler
• BW/2500: blower for high-pile carpets

Remarks

• Capable of sewing carpets with smaller inside radii
• Compatible with thicker carpet constructions
• Improved visibility for the operator
• Easier operation using the pneumatic foot
• Simplified threading and improved stitch quality
• Combined with the electronic motor (MEM) it can sew precise square corners
• Variants available: 2500AHC/3 (3-thread) and 4500AHC (high-speed)

Specifications

• Model: TITAN 2500AHC
• Application: Overedging carpets (automotive, aircraft, marine)
• Speed: 2800 rpm
• Stitch width: 10 mm
• Max thickness capacity: 10 mm
• Fabric feed: Bottom feed
• Needles: 1 needle
• Standard fittings: pneumatic footlift, tension opener
• Available options: RPE/2500, TA/2500, FH/2500, SET 30566, MEM/2500, NCV/2500, BW/2500
• Variants: 2500AHC/3 (3-thread), 4500AHC (high-speed)
