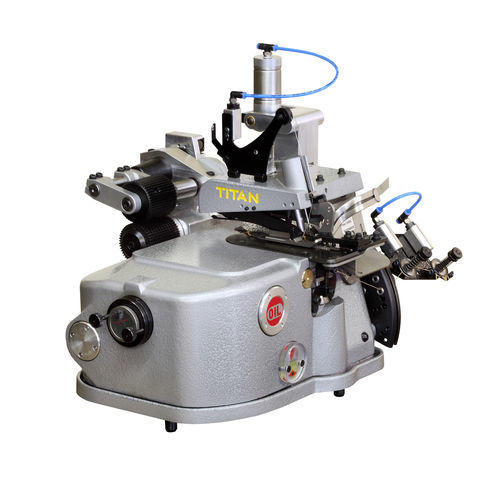

Single-needle carpet overedging machine TITAN 2500HLXC

single-threadtableelectronic

Short description
Special machine to sew an ultra narrow edge on handloom carpets or on velvet pile carpets.

Application / Use
Narrow overedging on handloom and velvet pile carpets.

Key features

• Speed: 2800 rpm
• Stitch width: 4 mm
• Maximum thickness: 10 mm
• Fabric feed: Bottom feed
• Needles: 1

Always included

• Pile pusher
• SET 30566 tape guide — feeds tape under the overedging to hold down the pile (10 mm)
• Carburated feeddog

Options strongly advised

• MEM/2500 — electronic motor
• NCV/2500 — needle cooler
• TA/2500 — upper table
• CP/2500 — pneumatic pressure foot and tension releaser
• RPE/2500 — external density adjuster to change number of stitches easily
• DCD/2500 — cutting device (special)
• 2600cv — pneumatic puller

Remarks

• Higher productivity can be obtained with model TITAN 4500CHX
• Left-hand version available
• 2500HLXC/3 — 3-thread overedging machine available

Technical specifications

• Model: TITAN 2500HLXC
• Manufacturer / Brand: TITAN (Vandewiele Group)
• Function: Ultra narrow overedging on handloom and velvet pile carpets
• Speed: 2800 rpm
• Stitch width: 4 mm
• Maximum material thickness: 10 mm
• Fabric feed type: Bottom feed
• Number of needles: 1
• Included accessories: Pile pusher; SET 30566 tape guide (10 mm); carburated feeddog
• Recommended options: electronic motor (MEM/2500); needle cooler (NCV/2500); upper table (TA/2500); pneumatic pressure foot and tension releaser (CP/2500); external density adjuster (RPE/2500); cutting device (DCD/2500); pneumatic puller (2600cv)
• Variants / notes: Left-hand version and a 3-thread variant (2500HLXC/3) available; higher productivity alternative: TITAN 4500CHX
