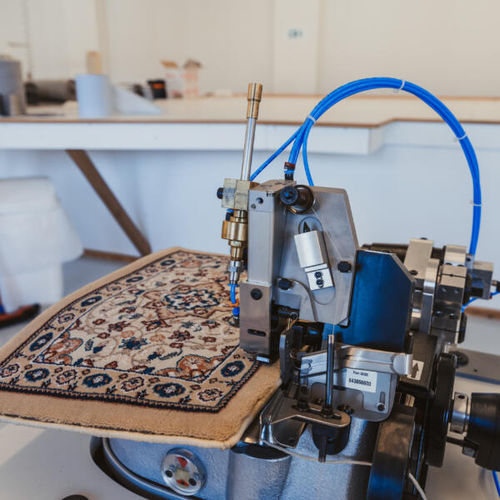

Overlock stitch carpet overedging machine TITAN 4500CHX

electronicwith electronic feeding systemhigh-speed

Product overview
The TITAN 4500CHX is an overedging machine designed to sew a fine 4 mm "handlook" finish on standard high-density carpets. Its compact structure and a redesigned presser-foot mechanism enable reliable handling of both high and low pile carpets at production speeds. Optional modules such as Needle Cooling (NCS), Tape Insertion (SET 30566) and Electronic Motor (MEM) expand application flexibility and simplify operation.

Main features

• Ultra-narrow 4 mm overedging suitable for standard carpets
• Produces a fine 4 mm "handlook" finish on high-density carpet constructions
• Compact frame with a new presser-foot mechanism for controlled feeding of different pile heights
• Optional equipment: Needle Cooling (NCS), Tape Insertion (SET 30566), Electronic Motor (MEM)

Performance

• Optimised for sewing 4 mm overedging
• Capable of processing carpet edges up to 18 mm thickness (edge max)
• Rated operating speed: up to 3200 rpm for high-throughput applications

Technical specifications

• Stitch width: 4 mm
• Typical carpet thickness (listed): 12 mm
• Maximum edge thickness: 18 mm
• Speed: 3200 rpm
• Options: Needle Cooling (NCS), Tape Insertion (SET 30566), Electronic Motor (MEM)
• Compact machine design with redesigned presser-foot mechanism for mixed pile handling
