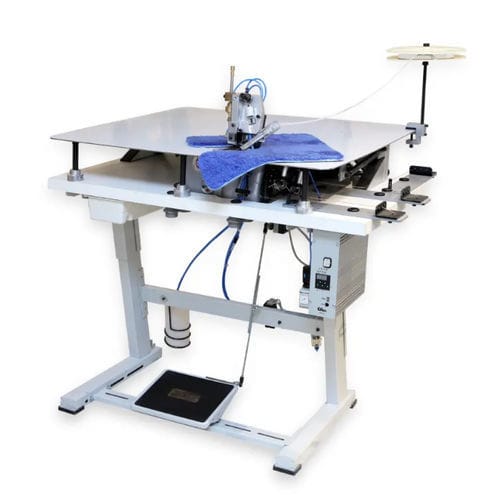

Overlock stitch overlock sewing machine TITAN 2500BHC/3

3-threadfor narrow fabrics

Product overview
This narrow overedging machine is designed for bathmats and similar narrow-edge textile products. The TITAN 2500BHC/3 performs 3-thread narrow overedging (5.5 mm) and enables easy sewing of external and internal curves, including small diameters. Built for workshop use, it facilitates handling of pile and thicker carpets with dedicated fittings.

Key specifications

• Stitch width: 6 mm
• Thread/stitch: 3-thread overedging, 5.5 mm
• Maximum carpet thickness: 10 mm
• Maximum speed: 2800 rpm

Standard fittings

• Pile pusher
• Pneumatic footlift
• Thread tension releaser
• CP/2500DAC: pneumatic pressure foot and tension releaser

Recommended options

• RPE/2500: external density adjuster to change number of stitches
• TA/2500: upper table AHC
• Set 30566: tape insertion device
• BW/2500: blower device for high-pile carpets
• MEM: electronic motor

Notes
Three-thread narrow (5.5 mm) overedging is suitable for narrow bathmat edging. The machine is configured for easy sewing of tight radii and can be equipped with the listed fittings to improve pile handling and operator control.

Technical specifications

• Model: TITAN 2500BHC/3
• Application: Narrow overedging of bathmats
• Threads: 3-thread overedging
• Thread/stitch dimension: 5.5 mm
• Stitch width: 6 mm
• Maximum carpet thickness: 10 mm
• Maximum speed: 2800 rpm
• Standard fittings: pile pusher, pneumatic footlift, thread tension releaser, CP/2500DAC
• Recommended options: RPE/2500, TA/2500, Set 30566, BW/2500, MEM
