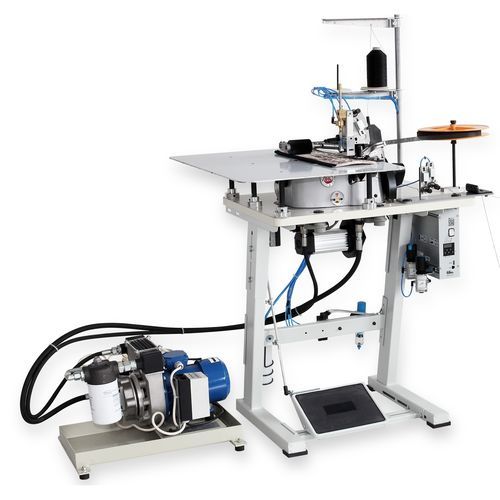

Single-needle carpet overedging machine TITAN 4500CHC

single-threadwith edge cutterwith puller

Overview
High-speed right- and lefthand compact carpet overedging machine suitable for integration in fully automatic production lines.

Introduction
Many internal and external components have been redesigned to deliver high-speed operation (3200 rpm) and extended service life.

Main features

• Speed: 3200 rpm
• Stitch width: 10 mm
• Maximum material thickness: 12 mm
• Fabric feed: bottom feed
• Needles: 1

Always included

• CP/4500-DAC: pneumatic footlift

Options

• CP/4500-DAC: pneumatic footlift
• RPE/4500: external stitch density
• DCD/4500: cutting device
• 2600S-DAC: long puller
• SET 30566: tape guide
• MEM/2500: electronic motor
• NCV/2500: needle cooler
• FH/FK4500: oil filter + cooling

Remarks

• Left- and righthand versions available for automation
• Oil filter with cooling is strongly advised
• 4510CHC: high-speed version for thicker carpets available
• 4500CHC/3: 3-thread overedging machine available

Technical specifications

• Model: TITAN 4500CHC
• Machine type: compact carpet overedging (right- and lefthand)
• Maximum speed: 3200 rpm
• Stitch width: 10 mm
• Maximum material thickness: 12 mm
• Fabric feed: bottom feed
• Needles: 1
• Compatible options/accessories: pneumatic footlift (CP/4500-DAC), external stitch density (RPE/4500), cutting device (DCD/4500), long puller (2600S-DAC), tape guide (SET 30566), electronic motor (MEM/2500), needle cooler (NCV/2500), oil filter + cooling (FH/FK4500)
• Variants: 4510CHC (high-speed for thicker carpets), 4500CHC/3 (3-thread overedging)
