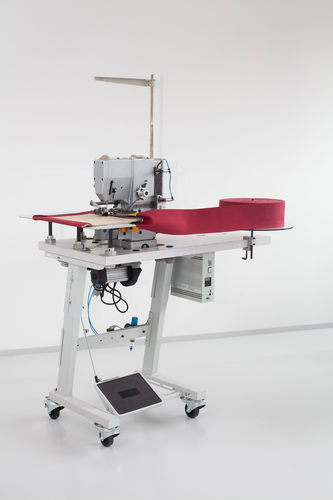

Double chain stitch carpet overedging machine TITAN 3700C

single-needle2-threadelectronic

Overview
Heavy-duty carpet tape binder designed to sew tape on a wide range of carpets including sisal, cocos and seagrass. Double chainstitch construction with synchronised upper and lower transport for reliable handling of natural-fibre carpets.

Product highlights

• Sews tape on all types of carpets.
• Machine especially designed for sisal, cocos and seagrass carpets.
• Synchronised upper and lower transport with walking-needle mechanism for positive material feed.
• Ensures reliable stitching without slipping or skipped stitches.
• Low maintenance thanks to automatic lubrication.

Features

• Speed: 2800 rpm.
• Maximum thickness capacity: 10 mm.
• Fabric feed system: puller.
• Needles: 1.

Always included

• Pneumatic footlift and tension opener.

Options

• P/3700: rear puller system to pull finished carpet through the machine (reduces manual handling for large carpets).
• P2/3700: extended puller for extra heavy carpets.
• NCV/3700C: needle cooler providing continuous airflow to cool the needle for carpets with latex backing.
• MEM/3700: electronic motor and sensor — automatic stop at the carpet edge with needle and presser foot raised, ready for cornering.
• Tape folders: custom-made folders for all types of ribbons and carpets.
• CIS folder: invisible stitch finishing.
• TA/DK 3700: upper table.

Remarks

• 4700C: high-speed version available for thicker carpets.
• Also suitable for technical textiles applications.
• 3700C can be supplied with AEG configuration.

Technical specifications

• Model: TITAN 3700C.
• Type: Carpet tape binder, heavy-duty double chainstitch.
• Speed: 2800 rpm.
• Maximum thickness capacity: 10 mm.
• Fabric feed system: puller.
• Needles: 1.
• Transport: Synchronised upper and lower transport with walking-needle mechanism.
• Maintenance: Automatic lubrication for low maintenance.
• Included: Pneumatic footlift and tension opener.
• Available options: rear puller (P/3700), long puller (P2/3700), needle cooler (NCV/3700C), electronic motor & sensor (MEM/3700), tape folders (custom), CIS folder (invisible stitch finishing), upper table (TA/DK 3700).
• Remarks: 4700C high-speed version for thicker carpets; also suitable for technical textiles.
