Overlock stitch carpet overedging machine TITAN 2510S

2-thread3-threadfor technical textiles

Overview

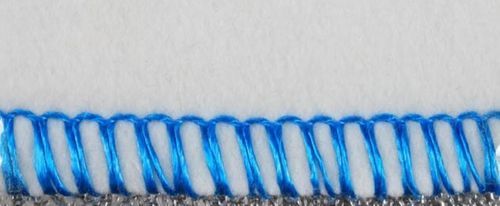

This machine type is developed to finish heavy-duty industrial fabrics with 2- or 3-thread overedging and stitch widths up to 19 mm. It is suitable for large bags, jute and polypropylene fabrics used in technical textile and bag applications.

Recommended options for this model

• RPE: stitch density control
• CP: pneumatic footlift to improve fabric handling
• MEM: electronic motor with needle stop in upper position
• Special parts available: thicker needles, special feeddogs, etc.

Key features

• Designed for heavy-duty industrial fabrics and large bags
• 2- or 3-thread overedging configurations
• Stitch width: 15–19 mm (maximum 19 mm)
• Material thickness capacity: up to 15 mm
• Maximum speed: 2800 rpm

Technical specifications

• Model name: TITAN 2510S
• Application: large overedging for technical textiles and bags (big bags, jute, polypropylene)
• Thread options: 2-thread or 3-thread configurations
• Stitch width: 15–19 mm (maximum 19 mm)
• Material thickness: up to 15 mm
• Maximum speed: 2800 rpm
• Optional accessories / upgrades: RPE (stitch density control), CP (pneumatic footlift), MEM (electronic motor with needle stop in upper position)
• Availability of special parts: thicker needles, special feeddogs and other heavy-duty components
