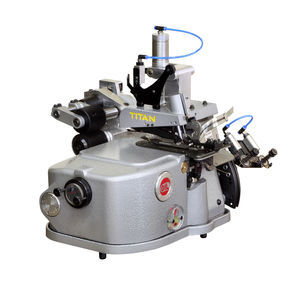

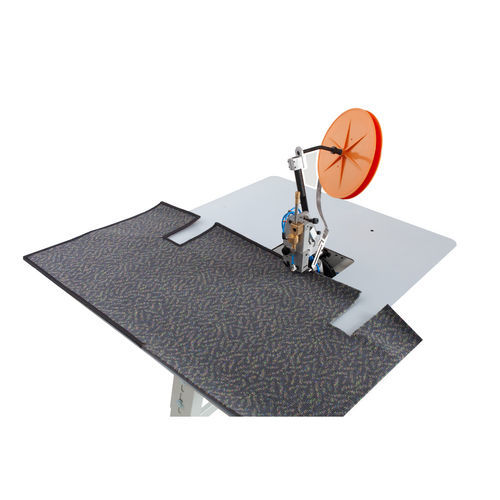

Single-needle carpet overedging machine TITAN 4510AHCthree-needle3-threadsingle-thread
Add to favorites
Compare this product
Characteristics
- Number of needles
- single-needle, three-needle
- Number of wires
- 3-thread, single-thread, 2-thread
- Applications
- for automotive applications
- Drive type
- with servo-motor
- Options and accessories
- drop feed
- Stitch width
10 mm
(0 in)
Description
Overview
Overedging carpets for car, boat and aviation applications; designed for extra-heavy pile and tight inside curves.
Introduction
Specially developed to process extra-heavy carpets (reference up to 15 mm in application notes; technical capacity up to 18 mm) and to handle small inside radii. Applied in automotive, marine and aviation interiors where precision edging and visibility are required.
Key features
Options strongly advised
Remarks
Technical specifications
Overedging carpets for car, boat and aviation applications; designed for extra-heavy pile and tight inside curves.
Introduction
Specially developed to process extra-heavy carpets (reference up to 15 mm in application notes; technical capacity up to 18 mm) and to handle small inside radii. Applied in automotive, marine and aviation interiors where precision edging and visibility are required.
Key features
- Speed: 3200 rpm
- Stitch width: 10 mm
- Thickness capacity: up to 18 mm (specification); application references up to 15 mm for extra-heavy carpets
- Fabric feed: Bottom feed for stable material transport
- Needles: 1 needle standard; two- and three-thread versions available (4510AHC/3)
Options strongly advised
- RPE/4500: external density adjuster to change number of stitches
- TA/2500: AHC upper table for improved material handling
- FH/2500: oil filter
- SET 30566: tape guide
- MEM/2500: electronic motor for controlled stitch placement
- NCV/2500: needle cooler for high-speed or long-cycle use
- BW/2500: blower for high-pile carpets
Remarks
- Capable of sewing carpets with small inside radii
- Accommodates thicker carpet qualities
- Improved operator visibility at the sewing point
- Easier operation with the new pneumatic foot
- Simplified threading and enhanced sewing consistency
- When combined with electronic motor (MEM) it enables precise sewing of square corners
- Model 4510AHC/3: available in two- and three-thread configurations
Technical specifications
- Model: TITAN 4510AHC
- Application: Overedging carpets for car, boat and aviation interiors
- Designed for: Extra-heavy carpets and small inside curves (special development for aviation)
- Maximum/referenced carpet thickness: up to 15 mm (application reference) / up to 18 mm (technical capacity)
- Speed: 3200 rpm
- Stitch width: 10 mm
- Fabric feed type: Bottom feed
- Needles: 1 needle standard; two- and three-thread versions available (4510AHC/3)
- Recommended options: RPE/4500, TA/2500, FH/2500, SET 30566, MEM/2500, NCV/2500, BW/2500
