Monitoring control system PCS 150

for dosingautomationelectric

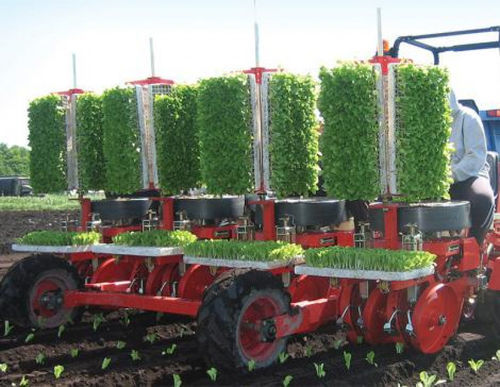

Product overview The PCS 150 is ROJ's transplanter control system designed to replace mechanical transmission in transplanting machines with electric drives, enabling greater operational flexibility and functions not possible with mechanical transmission. The system is based on the Agri-Motion DMD-0 motor and is managed by the PCS 150 ECU. It is scalable by adding additional fertiliser hopper distributors and supports USB data logging for invoicing and statistical analysis.

Key features

• Cam-profile movement to facilitate plant placement on the distributor
• USB key log for invoicing and statistical analysis
• Fertiliser and micro-granular dosing management
• Support for alternator and battery power for high row counts
• Optional plant counter and presence sensor
• Scalable architecture to add extra fertiliser hopper distributors

Technical description The PCS 150 replaces mechanical transmission with electric drives (Agri-Motion DMD-0) managed by the PCS 150 ECU. It handles fertiliser and micro-granular dosing, provides programmable cam-profile movement for precise plant positioning and records operational data on a USB key. Power management supports alternator and battery operation when many rows are driven. Optional sensors (plant counter, presence sensor) enable advanced monitoring and control.

Technical specifications

• Model: PCS 150 transplanter control system
• Drive motor: Agri-Motion DMD-0
• Control unit: PCS 150 ECU
• Function: Replace mechanical transmission with electric drives for transplanting machines
• Expandable: Supports additional fertiliser hopper distributors
• Data logging: USB key log for invoicing and statistics
• Fertiliser handling: Fertiliser and micro-granular dosing management
• Power options: Support for alternator and battery for high row counts
• Optional sensors: Plant counter and presence sensor
