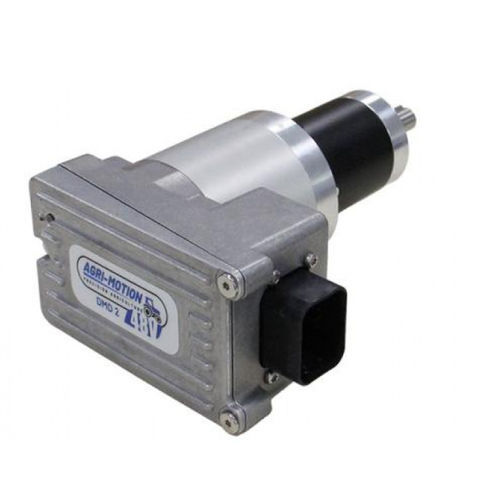

Brushless gear-motor DMD-2

BLDCbrushless DCelectronically commutated

Product overview
The DMD-2 48V is a brushless motor with an integrated electronically driven planetary gearbox, designed for 48V agricultural equipment. It replaces mechanical or hydraulic transmissions in machines requiring precise speed and position control, such as variable-rate applicators.

Features

• Designed for 48V agricultural equipment
• Output torque: 4.5 Nm; Output speed: 80 rpm at gearbox output shaft
• Integrated brushless motor drive with CANOpen (speed and position control)
• 2 digital inputs (e.g., seed sensor, hopper level sensor)
• Custom versions and interfaces available on request

Advantages vs 12V

• At equal motor power, 48V systems draw 1/4 of the current, reducing voltage-drop issues
• For the same current, more motors can be connected to a 48V system, increasing total installed power

Applications
Suitable as a direct replacement for mechanical or hydraulic drives in agricultural machines, especially for variable-rate applications where CANOpen speed and position control is required.

Technical specifications

• Motor type: Brushless (BLDC) with integrated electronically driven planetary gearbox
• Nominal voltage: 48V
• Output torque: 4.5 Nm
• Output speed: 80 rpm at gearbox output shaft
• Drive: Integrated motor drive with CANOpen (speed and position control)
• Inputs: 2 digital inputs (e.g., seed sensor, hopper level sensor)
• Customization: Custom versions available on request
