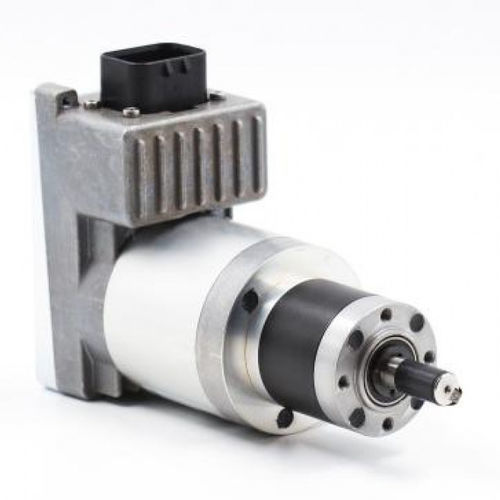

Brushless gear-motor DMD-2

planetary12 V1 - 5 Nm

Overview
The DMD-2 is a brushless motor with integrated planetary gearbox and electronic drive, engineered for agricultural and off-highway applications where mechanical or hydraulic transmissions must be replaced (for example variable-rate equipment). Standard configuration targets 12 V systems; 48 V versions are available on request. The unit provides precise speed and position control via CANopen and can be adapted with custom output shafts.

Features

• Designed for 12 V agricultural equipment (48 V on request)
• Nominal torque: 4.5 Nm at output shaft
• Output speed: 80 rpm at gearbox output
• Custom shaft versions available upon request
• Integrated brushless drive with CANopen communication (speed and position control)
• Two digital inputs (e.g. seed sensor, hopper level sensor)

Technical characteristics / Specifications

• Model: DMD-2
• Motor type: Brushless with integrated planetary gearbox and electronic drive
• Nominal voltage: 12 V (48 V available on request)
• Nominal torque: 4.5 Nm
• Output speed: 80 rpm at gearbox output
• Communication: CANopen (speed and position control)
• Inputs: 2 digital inputs for application signals
• Applications: Replacement of mechanical or hydraulic transmissions in agricultural/off-highway equipment; variable-rate applications
• Customization: Custom output shafts and variants available on request
