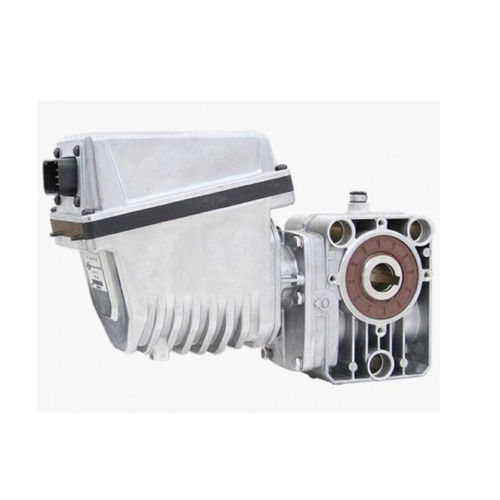

Brushless servo-gearmotor DMD-0

BLDCbrushless DCright angle

Overview
The DMD-0 is an application-specific brushless motor combining an orthogonal gearbox and an integrated electronic drive. It is designed as a direct replacement for mechanical or hydraulic transmissions in agricultural and other off-highway equipment, especially where compact size and CANopen control are required.

Features

• Designed for 12 V agricultural equipment
• Output torque: 8.75 Nm, output speed: 100 rpm at output shaft
• Rugged anti-corrosion aluminum housing
• Slim design: 85 mm total width to fit tight installation spaces
• CANopen communication for speed and position control
• Integrated low-power DC drive for small actuators (e.g. seed singulator)
• Two application-specific digital inputs (seed counting and seed singulator position)

Applications

• Replacement of mechanical or hydraulic transmissions in agricultural/off-highway equipment
• Variable-rate applications and control of small actuators such as seed singulators
• Use in corrosive or harsh field environments where compact integration is required

Technical specifications

• Type: Application-specific brushless motor with integrated orthogonal gearbox and electronic drive
• Nominal supply: 12 V (designed for 12 V agricultural equipment)
• Output torque: 8.75 Nm
• Output speed: 100 rpm at output shaft
• Housing: Rugged anti-corrosion aluminum
• Total width: 85 mm (slim design)
• Communication: CANopen (speed and position control)
• Integrated drive: Low-power DC motor drive for small actuators
• Digital inputs: 2 application-specific digital inputs (seed counting, seed singulator position)
• Intended use: Agricultural and other off-highway applications (e.g. variable-rate systems)
