Monitoring control system PCS 200

regulatingfor dosingautomation

Product overview

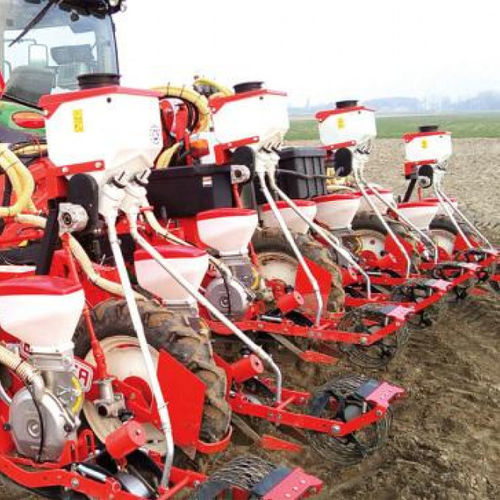

The PCS 200 is Agri-Motion's pneumatic precision planter control system. It replaces the mechanical drive of seeding discs with an electric motor drive to increase machine flexibility and enable functions not possible with a mechanical transmission.

System and components
The PCS 200 is built around the Agri-Motion DMD-0 motor and is managed by the PCS 200 ECU. The architecture is modular and can be expanded with additional seed distributor units and fertiliser hopper distributors to fit a wide range of planter configurations. Mixed installations with the DMD-2 motor are supported.

Applications and benefits
Designed for pneumatic seeders and applicable to vegetable planters, PCS 200 supports per-row population settings to optimise seed density (for example, increasing population on outer rows). The system enables section control, seed monitoring and precise vacuum management to improve sowing accuracy and operational flexibility.

Key features

• Colour touch-screen user interface
• Manual section control (section on/off)
• Individual row population setting
• Seed monitoring and diagnostics
• Vacuum pressure sensor control
• Tramline (tram) function
• Seed job log exportable to USB key
• Compatibility with CASE IH AFS and CNH PLM for section control

Additional information

• Replaces mechanical seeding disc transmission with electric motor drive for added flexibility and new functions
• Scalable, modular architecture supports extra seed distributors and fertiliser hoppers
• Suitable for standard and vegetable planters with per-row adjustment to optimise yields
• Supports mixed installations combining Agri-Motion DMD-0 and DMD-2 motors

Technical specifications

• Controller: PCS 200 ECU
• Motor: Agri-Motion DMD-0 (mixed installation possible with DMD-2)
• User interface: Colour touch-screen display
• Control functions: manual section control, tramline function
• Planting functions: individual row population, seed monitoring
• Sensors: vacuum pressure sensor control
• Data logging: seed job log exportable via USB key
• Scalability: supports additional seed distributors and fertiliser hopper distributors
• Application: compatible with pneumatic seeders and vegetable planters
