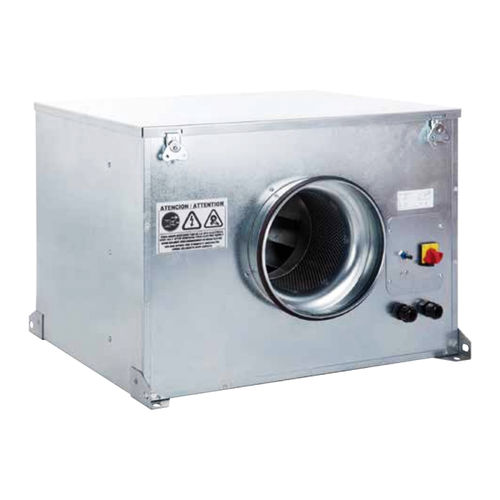

Centrifugal fan CAB ECOWATT series
ventilationin-lineIP44

centrifugal fan
centrifugal fan
Add to favorites
Compare this product


Characteristics

Configuration
centrifugal
Function
ventilation
Other characteristics
in-line, IP44
Air flow

Min.: 185 m³/h
(6,533.213 ft³/h)

Max.: 620 m³/h
(21,895.093 ft³/h)

Description

Application Very quiet operation makes CAB ideal for ventilation of public buildings, libraries, conference rooms, offices, restaurants, classrooms, audio studios, etc. Construction CAB fans with sound insulation are recommended for ventilation systems where one of the most important parameters is the volume level. The fan casing is made of galvanized sheet steel and is equipped with 50mm fire-retardant fiberglass (M0) sound insulation. Impeller with sloping forward blades of galvanized sheet steel. The rounded inlet and outlet nozzles are fitted with rubber gaskets. Easily opening the casing allows access to the impeller and motor without dismantling the fan from the installation. The housing cover is equipped with locks for quick photo without any additional tools. All models are also equipped with four mounting brackets to install the fan on the wall, floor or ceiling. Motor The fans are equipped with brushless EC motor, single phase 230V 50/60Hz. The motor is thermally protected and has an IP44 protection rating. Fan speed can be adjusted by the potentiometer located on the cover of the power box or by the REB-ECOWATT regulator. Analog inputs with terminals in the terminal box allow the fan to be controlled by a 0-10V voltage signal. The fan on the casing has an ON-OFF power switch.
