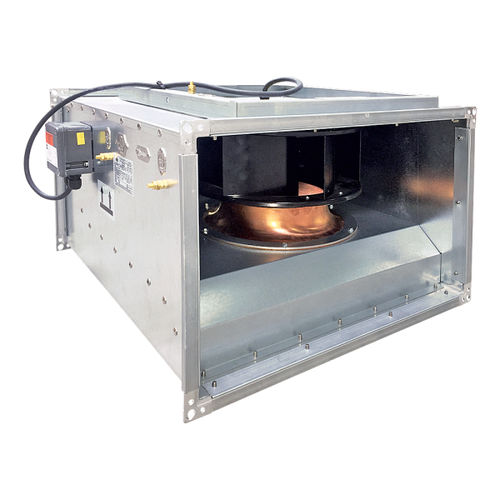

Duct fan EBF seriesATEXcentrifugalcooling
Add to favorites
Compare this product
Characteristics
- Type
- duct, ATEX
- Configuration
- centrifugal
- Function
- cooling
- Supply voltage
- 400VAC
- Material
- steel
- Applications
- industrial
- Air flow
Max.: 6,000 m³/h
(211,888 ft³/h)Min.: 1,500 m³/h
(52,972 ft³/h)- Rotational speed
Max.: 1,390 rpm
(8,734 rad.min-1)Min.: 910 rpm
(5,718 rad.min-1)- Noise level
Max.: 53 dB
Min.: 36 dB
Description
EBF fans comply with the requirements of the ATEX Directive 2014/34 / EU, they are designed for use in explosion hazard zones outside mines and mine workings. They meet the requirements of group II category 2G / 3G - zone 1 and / or 2.
ATEX marking: II 2G Ex h IIB T3 Gb.
Construction
•Explosion-proof rectangular duct fan with direct drive,
•rotor with backward tilted blades made of painted steel sheet (RAL 9005),
•copper inlet,
•housing made of galvanized steel sheet,
•inspection hole for easy access to the rotor without the need to disassemble the entire fan,
•operating temperature range -20 ° C to + 40 ° C.
Motor
•explosion-proof, three-phase 400V, 50Hz
