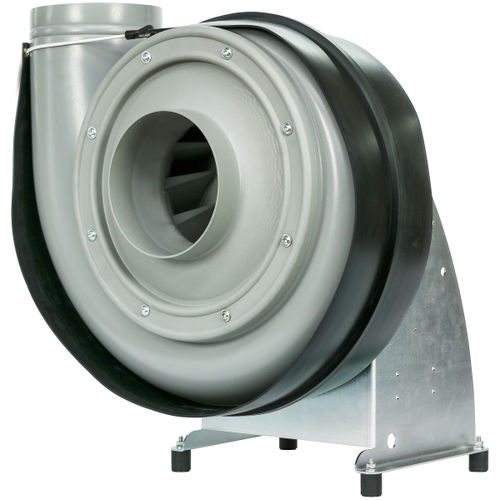

ATEX fan CMV PRO series

centrifugalextraction400VAC

CMVeco centrifugal fans are designed for the transport of aggressive chemicals, humid gases or fumes. Suitable for use in extraction systems and fume hoods in chemical industry and are widely used in public buildings such as hospitals, laboratories, schools. The fan is designed to transport dust-free medium containing aggressive chemical compounds. Typical fields of application: •fume cupboards and chemical laboratories •chemical, pharmaceutical and food industries •public utility facilities Construction •impeller with backward curved blades made of PPs polypropylene •housing made of polypropylene PPs •motor base made of galvanized sheet •standard figure LG90 •maximum temperature of the transported medium 70 ° C (standard version) or 60 ° C (ATEX version) •motor ambient temperature from -20 ° C to 40 ° C Motor •asynchronous, single-phase, 230 V, 50 Hz (depending on the model) •asynchronous, three-phase, 230/400 V, 50 Hz •degree of protection IP55 •insulation class F •for frequency regulation (three-phase motors) or voltage regulation (single-phase motors)
