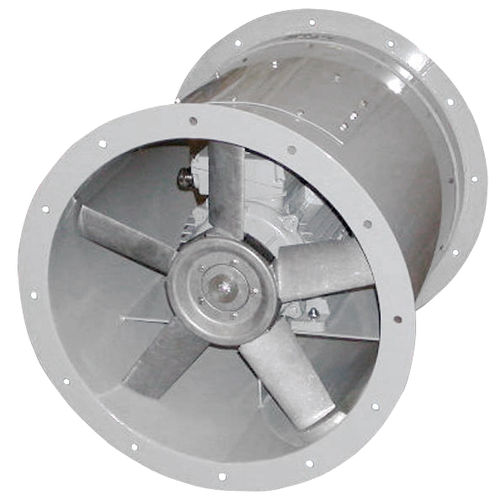

Duct fan AFC-HT series

axialventilationhigh-temperature

Application AFC-HT fans are suitable for use in ventilation systems that require high temperature of transported air, e.g., ventilating hoods over furnaces. Construction Axial fan suitable for transporting clean air at temperature of 90°C (with deviation up to 100°C, 10 min/h). The fan is designed for assembly in ventilation ducts. The housing is made of welded steel sheet painted with powder paint. Aluminium rotor dynalically balanced as per ISO 1940. On request, we can supply fans complying with the customer’s specifications – customised (i.e., longer or shorter housing, a non-standard diameter, and/or made of stainless or galvanised steel). On request the fans can be supplied in any colour from the RAL palette (RAL 7042 – grey is the standard colour). Characteristics established at 20°C. Air flow direction: rotor to engine. Non-standard and special orders require prior contact with Venture Industries Sp. z o.o. Electric motor Asynchronous, three-phase 230/240V or 400V, 50Hz. The motors are made in accordance with IEC 60072 and IEC 60034 standards, and have been awarded with a CE mark. Insulation class F, degree of protection IP 55.
