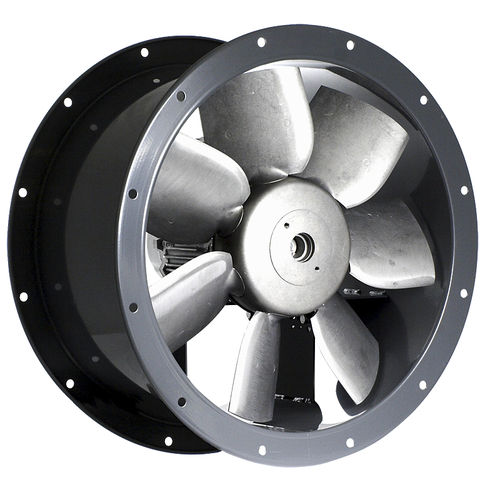

Axial fan THGT series

extractionIP55

General information Range of adjustable pitch cased axial flow fans designed for smoke extraction in conditions of combustion, and certified F400-120 and F200-120 (CE marked). Casings formed from rolled sheet steel with a corrosion resistant hot dipped galvanised finish.. All models incorporate separate high grade die-cast aluminum blades locked within a pressed sheet steel hub. All models are available in both short and long (L) casing versions (except 500 model). Suitable for use in both horizontal and vertical positions. Motors Available, depending on the model, with: three-phase motors in 2*, 4, 6 or 8 poles. three-phase two-speed motors 2/4*,4/8 or 6/12 poles. F400 120 motors are IP55, class H insulation. F200 120 motors are IP55, class F insulation. Electrical supplies: Three-phase 230/400V-50Hz up to 3 kW. Three-phase 400V-50Hz, for higher power motors and two-speed motors. *Only with F200-120 models
