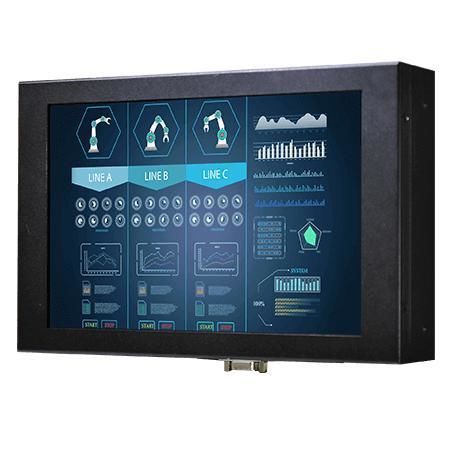

Touch screen monitor W10L100-CHH2OD

resistive touch screenindustrialoutdoor

Product
10.1 inch resistive touch chassis display, model W10L100-CHH2OD, designed for outdoor and industrial installations. Sunlight-readable high-brightness panel with VESA mounting and metal housing, suitable for continuous visual operation.

Key Features

• Sunlight readable with 1000 nits high-brightness solution
• Supports VESA mount
• Operating temperature: -10 to 60°C
• Optional extended operating temperature: -25 to 60°C with heater solution
• Resistive touch screen (default)
• Optional solar radiation protection with UV film for direct-sun environments

Overview

• Easy mounting: universal wall and flat-surface mounting options enable quick installation across industries.
• Clear and vibrant display: high brightness and sunlight-readability enhance legibility in outdoor conditions and support 24/7 operation.
• Built for outdoor use: optional heater and UV film expand usable temperature range and protect the panel in direct sunlight.

Specifications

• Model: W10L100-CHH2OD
• Size: 10.1 inches
• Touch / Glass: Resistive Touch Screen (default); Protection Glass without touch (optional)
• Resolution: 1280 x 800
• Panel Brightness: 1000.0 nits
• Contrast Ratio: 800:1
• View Angles: 85, 85, 85, 85
• Display Color: 16.7M Colors
• Active Area: 216.96 x 135.6 mm
• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: -10°C to 60°C (optional -25°C to 60°C with heater)
• Storage Temperature: -20°C to 70°C
• Certification: CE, FCC
• USB Port: 1 x USB for touch screen
• Video: 1 x VGA (default); 1 x HDMI (optional); 1 x DVI (optional)
• Audio: Audio line in (3.5 mm) (optional); 2 x speakers (optional)
• Dimension: 270 x 160 x 38 mm
• Weight: 1.2 kg
• Mounting: VESA mount
• Enclosure: Metal housing with aluminum bezel
• Cooling System: Fanless design
• Accessories (included): 1 x VGA cable; 1 x HDMI cable; 100~240V AC to DC adapter; power cord; manual; VESA screws (may vary)
• Optional Accessory: Remote controller (optional, varies by product)
• Power Rating: 12V DC in; 24V DC in (optional)
• Controls / Buttons: 5 keys: -, +, Power, Esc, Enter
