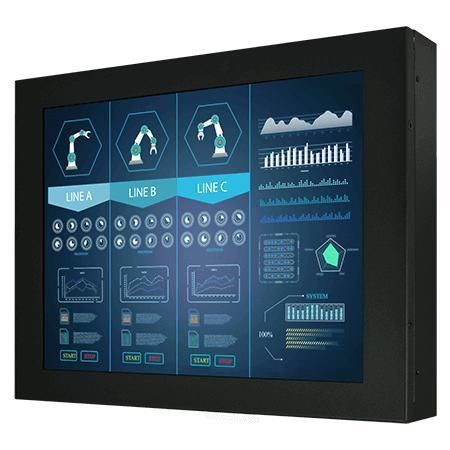

Resistive touch screen monitor R15L100-CHC3OD

industrialoutdoorprotection

Overview
The Winmate R15L100-CHC3OD is a 15.0-inch resistive touch industrial outdoor display designed for sunlight-readable 24/7 visual operation. It supports VESA mounting and offers optional heater and UV film for extended environmental tolerance and solar protection, making it suitable for industrial and commercial outdoor installations.

Key Features

• Sunlight readable with high-brightness 1000 nits panel
• VESA mount support for wall and flat-surface installation
• Operating temperature: -10°C to 60°C (optional -25°C to 60°C with heater)
• Resistive touch screen (default); optional protection glass without touch
• Optional solar radiation protection with UV film for direct sunlight environments

Certifications

• CE
• FCC

Product details
The R15L100-CHC3OD series facilitates straightforward installation with universal wall and flat-surface mounting options. Built for continuous operation in bright environments, the product offers hardware options (heater, UV film) to ensure readability and reliable performance in harsh outdoor and industrial conditions.

Technical specifications

• Model: R15L100-CHC3OD
• Size: 15.0 inches
• Touch / Glass: Resistive Touch Screen (Default); Protection Glass w/o Touch Function (Optional)
• Resolution: 1024 x 768
• Panel Brightness: 1000 nits
• Contrast Ratio: 2000:1
• View Angles: 88, 88, 88, 88
• Display Color: 16.2M Colors
• Active Area: 304.1 x 228.1 mm
• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: -10°C to 60°C (Optional: -25°C to 60°C with heater)
• Storage Temperature: -20°C to 70°C
• Certification: CE, FCC
• USB Port: 1 x USB for touch
• Video: 1 x VGA (Default); 1 x HDMI (Optional); 1 x DVI (Optional)
• Audio: Audio line in (3.5mm) (Optional); 2 x speaker (Optional)
• Dimension: 369 x 289.6 x 47 mm
• Mounting: VESA Mount
• Enclosure: Metal
• Cooling System: Fanless Design
• Accessory (included): 1 x VGA cable; 1 x HDMI cable; 100~240V AC to DC adapter; power cord; manual; VESA screws (varies by product)
• Optional Accessory: Remote controller (varies by product)
• Power Rating: 12V DC in (default); 24V DC in (optional)
• Control / Buttons: 5 keys: -, +, Power, Esc, Enter
