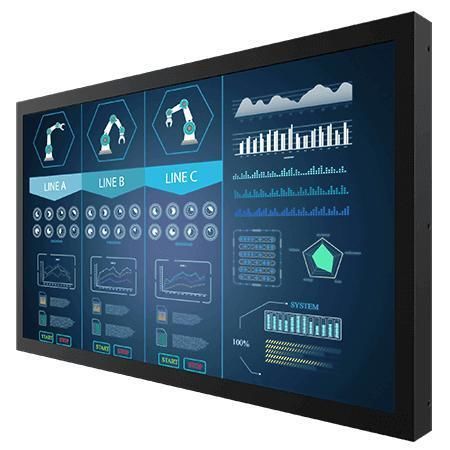

Resistive touch screen monitor W22L100-CHB1OD

for industrial machinesfor digital signagefor vehicles

Overview
The W22L100-CHB1OD is a 21.5-inch resistive touch chassis display engineered for outdoor and industrial applications. The panel delivers 1000 nits brightness for sunlight readability and supports universal wall and flat-surface mounting with VESA compatibility. Optional UV film and an optional heater extend suitability for direct-sunlight environments and low-temperature operation.

Key Features

• Sunlight-readable 1000 nits panel
• Resistive touch screen (default); protection glass without touch optional
• VESA mounting support for wall and flat installations
• Operating temperature: -10°C to 60°C (optional -25°C to 60°C with heater)
• Optional solar radiation protection with UV film
• Fanless metal enclosure for reliable outdoor use

Certifications

• CE
• FCC

Applications
Designed for outdoor kiosks, industrial HMI, transportation displays and other 24/7 visual applications where high brightness, durable mounting and extended temperature range are required.

Technical specifications

• Model: W22L100-CHB1OD
• Size: 21.5 inches
• Resolution: 1920 x 1080 (FHD)
• Panel Brightness: 1000 nits
• Contrast Ratio: 1000:1
• Display Color: 16.7M colors
• Active Area: 476.64 x 268.11 mm
• View Angles: 90, 90, 90, 90
• Touch / Glass: Resistive Touch Screen (Default); Protection Glass w/o Touch Function (Optional)
• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: -10°C to 60°C (optional -25°C to 60°C with heater)
• Storage Temperature: -20°C to 70°C
• Dimensions: 506.5 x 302.5 x 60.5 mm
• Mounting: VESA mount
• Enclosure: Metal, fanless design
• IO: 1 x USB (touch), 1 x VGA (default); HDMI, DVI optional
• Audio: Line-in 3.5 mm (optional); 2 x speakers (optional)
• Power: 12V DC in (24V DC optional)
• Control: 5 keys (-, +, Power, Esc, Enter)
• Accessories (examples): VGA cable, HDMI cable, 100~240V AC-DC adapter, power cord, manual, VESA screws; remote control optional
