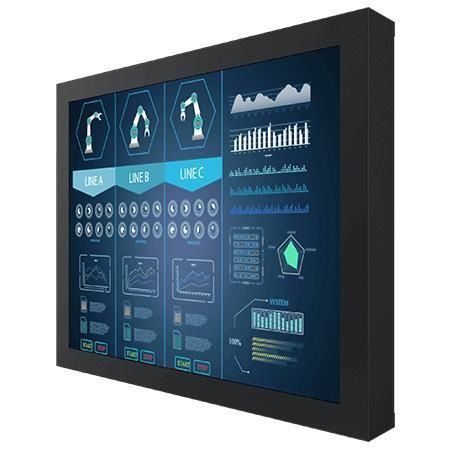

Resistive touch screen monitor R19L300-CHA3OD

with touchscreenoutdoorfor industrial machines

Overview
Winmate R19L300-CHA3OD is a 19.0-inch resistive touch chassis display engineered for industrial HMI and outdoor/indoor applications. The sunlight-readable 1000 nits panel, VESA compatibility and optional heater and UV film make it suitable for installations requiring extended temperature range and solar protection. Universal wall and flat-surface mounting enable straightforward integration across sectors.

Key Features

• Sunlight-readable 1000 nits high-brightness panel
• Supports resistive touch (default); optional protection glass without touch
• VESA mount compatible for universal mounting
• Operating temperature: -10°C to 60°C (optional -25°C to 60°C with heater)
• Optional UV film for solar radiation protection
• Fanless design with metal enclosure

Certifications

• CE
• FCC

Technical specifications

• Model: R19L300-CHA3OD
• Brand: Winmate
• Display - Size: 19.0 inches
• Display - Touch / Glass: Resistive Touch Screen (Default); Protection Glass w/o Touch Function (Optional)
• Display - Resolution: 1280 x 1024
• Display - Panel Brightness: 1000.0 nits
• Display - Contrast Ratio: 1000:1
• Display - View Angles: 85, 85, 80, 80
• Display - Display Color: 16.7M Colors
• Display - Active Area: 376.32 x 301.06 mm
• Environment - Operating Humidity: 10% to 90% RH, Non-Condensing
• Environment - Operating Temperature: -10°C to 60°C (optional -25°C to 60°C with heater)
• Environment - Storage Temperature: -20°C to 70°C
• Certification: CE, FCC
• IO Ports - USB Port: 1 x USB for Touch Screen
• IO Ports - Video: 1 x VGA (Default); 1 x HDMI (Optional); 1 x DVI (Optional)
• IO Ports - Audio: Audio line in (3.5mm) (Optional); 2 x Speaker (Optional)
• Mechanical - Dimension: 430 x 355 x 50 mm
• Mechanical - Mounting: VESA Mount
• Mechanical - Enclosure: Metal
• Mechanical - Cooling System: Fanless Design
• Accessory - Included: 1 x VGA cable; 1 x HDMI cable; 100~240V AC to DC Adapter; Power Cord; Manual; VESA screws (Varies by product)
• Accessory - Optional: Remote Controller (Optional, Varies by product)
• Power - Power Rating: 12V DC in; 24V DC in (optional)
• Control - Button: 5 Keys: -, +, Power, Esc, Enter
