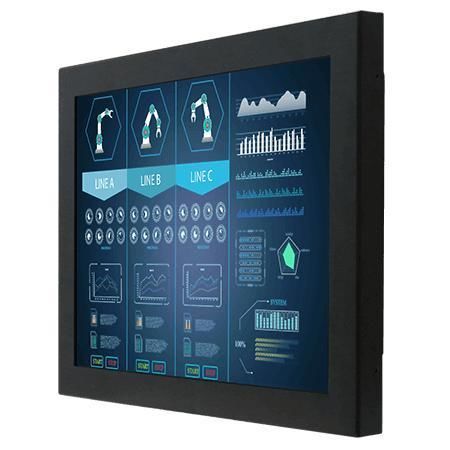

LCD monitor R12L600-CHM2ODresistive touch screenindustrialoutdoor
Add to favorites
Compare this product
Characteristics
- Technology
- LCD, resistive touch screen
- Applications
- industrial, outdoor, for displays
- Display size
- 12.1"
- Resolution
- 1024 x 768
- Mounting
- VESA mounting, wall-mount
- Other characteristics
- HDMI, USB, VGA, high-brightness, DVI port, fanless, sunlight-readable
- Operating temperature
Max.: 60 °C
(140 °F)Min.: -10 °C
(14 °F)
Description
Key Features
Certifications
Overview
Technical specifications
- Sunlight-readable high-brightness 1000 nits panel
- VESA mount compatible
- Operating temperature: -10°C to 60°C (optional -25°C to 60°C with heater)
- Resistive touch screen (standard); protection glass optional
- Optional UV film for solar radiation protection
Certifications
- CE
- FCC
Overview
- Easy mounting: supports universal wall and flat-surface VESA installation for industrial environments
- Clear and vibrant display: high brightness panel ensures readability under direct sunlight and supports 24/7 visual operation
- Built for outdoor use: optional heater and UV film expand operating range and protection for outdoor industrial applications
Technical specifications
- Model: R12L600-CHM2OD
- Brand: Winmate
- Size: 12.1 inches
- Touch / Glass: Resistive Touch Screen (Default); Protection Glass w/o Touch Function (Optional)
- Resolution: 1024 x 768
- Panel Brightness: 1000 nits
- Contrast Ratio: 700:1
- View Angles: 80,80,70,70
- Display Color: 16.2M Colors
- Active Area: 261.12 x 163.2 mm
- Operating Humidity: 10% to 90% RH, non-condensing
- Operating Temperature: -10°C to 60°C (optional -25°C to 60°C with heater)
- Storage Temperature: -20°C to 70°C
- Certification: CE, FCC
- USB Port: 1 x USB for touch
- Video: 1 x VGA (Default); 1 x HDMI (Optional); 1 x DVI (Optional)
- Audio: Line in (3.5mm) optional; 2 x Speaker optional
- Dimension: 290 x 230 x 45 mm
- Weight: 2 kg
- Mounting: VESA Mount
- Enclosure: Metal
- Cooling System: Fanless design
- Accessory (included): VGA cable, HDMI cable, 100~240V AC to DC adapter, power cord, manual, VESA screws
- Optional Accessory: Remote controller (optional)
- Power: 12V DC in (standard); 24V DC in (optional)
- Buttons: 5 keys: -, +, Power, Esc, Enter
