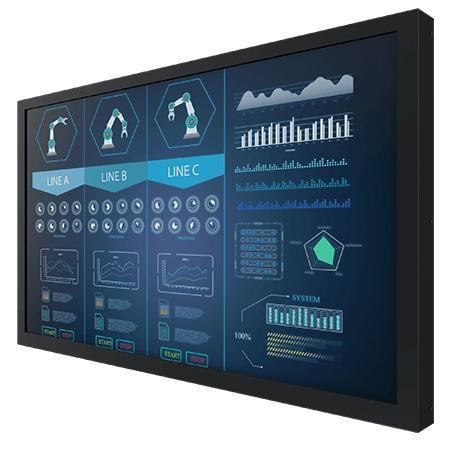

LCD monitor W24L100-CHC1OD

touch screenresistive touch screenindustrial

Overview
The W24L100-CHC1OD is a 23.8-inch outdoor industrial touch display designed for sunlight-readable operation with a 1000-nit high-brightness panel. It supports resistive touch (default), VESA mounting and optional heater and UV-film protection for direct-sun environments, enabling reliable 24/7 visual use in industrial and commercial installations.

Key features

• Sunlight readable with high-brightness (1000 nits)
• Resistive touch screen (default); protection glass without touch optional
• VESA mount support for wall or flat-surface installation
• Operating temperature: -10°C to 60°C; optional -25°C to 60°C with heater
• Optional UV film for solar radiation protection in directed sunlight
• Fanless metal enclosure for industrial environments

Certifications

• CE
• FCC

Technical specifications

• Model: W24L100-CHC1OD
• Size: 23.8 inches
• Resolution: 1920 x 1080
• Panel Brightness: 1000 nits
• Contrast Ratio: 1000:1
• Viewing Angles: 88/88/88/88
• Display Color: 16.7M Colors
• Active Area: 527.04 x 296.46 mm
• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: -10°C to 60°C (optional -25°C to 60°C with heater)
• Storage Temperature: -20°C to 70°C
• IO: 1 x USB for touch; Video: 1 x VGA (default), HDMI (optional), DVI (optional)
• Audio: Line-in (3.5mm) optional; 2 x speakers optional
• Dimensions: 561 x 328.1 x 64 mm
• Mounting: VESA mount
• Enclosure: Metal
• Cooling: Fanless design
• Power: 24V DC in
• Control: 5 keys (-, +, Power, Esc, Enter)

Accessories & Options

• Included: VGA cable, HDMI cable, 100~240V AC to DC adapter, power cord, manual, VESA screws (varies)
• Optional: HDMI/DVI interfaces, protection glass (no touch), heater, UV film, remote controller

Applications

• Outdoor kiosks, wayfinding and information displays
• Industrial control panels and HMI for outdoor locations
• Transportation signage, terminal and platform displays
• Retail digital signage and outdoor point-of-sale terminals
