LCD monitor R10L100-CHT2OD
resistive touch screenindustrial10.4"

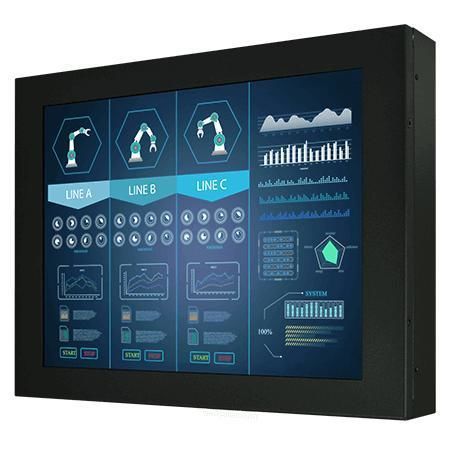

LCD monitor - R10L100-CHT2OD - Winmate, Inc. - resistive touch screen / industrial / 10.4"
LCD monitor - R10L100-CHT2OD - Winmate, Inc. - resistive touch screen / industrial / 10.4"
LCD monitor - R10L100-CHT2OD - Winmate, Inc. - resistive touch screen / industrial / 10.4" - image - 2
Add to favorites
Compare this product
Go to the Winmate, Inc. website for more information

Characteristics

Technology
LCD, resistive touch screen
Applications
industrial
Display size
10.4"
Resolution
1024 x 768
Mounting
VESA mounting, wall-mount
Other characteristics
HDMI, USB, VGA, high-brightness, DVI port, fanless, sunlight-readable
Operating temperature

Min.: -10 °C
(14 °F)

Max.: 60 °C
(140 °F)

Description

Product
  • 10.4-inch resistive touch chassis display designed for outdoor and industrial applications.
  • Sunlight-readable high-brightness panel with optional UV film and optional heater for extended temperature range.
  • Supports VESA mounting; resistive touch default, protection glass without touch optional.


Key Features
  • Sunlight readable — panel brightness 1000 nits
  • VESA mount support
  • Operating temperature: -10°C to 60°C (optional -25°C to 60°C with heater)
  • Resistive touch screen (default)
  • Optional solar radiation protection with UV film for directed sunlight environments


Installation
  • Universal wall and flat-surface mounting options enable flexible installation in industrial and commercial environments.


Certifications
  • CE
  • FCC


I/O & Accessories
  • USB: 1 x USB for touch screen
  • Video: 1 x VGA (default); HDMI and DVI optional
  • Audio: 3.5 mm line-in (optional); 2 x speaker (optional)
  • Included accessories: 1 x VGA cable, 1 x HDMI cable, 100~240V AC to DC adapter, power cord, manual, VESA screws (varies by product)


Specifications
  • Model: R10L100-CHT2OD
  • Brand: Winmate
  • Display size: 10.4 inches
  • Touch / Glass: Resistive Touch Screen (Default); Protection Glass w/o Touch Function (Optional)
  • Resolution: 1024 x 768
  • Panel brightness: 1000 nits
  • Contrast ratio: 1000:1
  • View angles: 88,88,88,88
  • Display color: 16.2M Colors
  • Active area: 210.4 x 157.8 mm
  • Operating humidity: 10% to 90% RH, non-condensing
  • Operating temperature: -10°C to 60°C (optional -25°C to 60°C with heater)
  • Storage temperature: -20°C to 70°C
  • Dimension: 259.6 x 196.6 x 45 mm
  • Mounting: VESA Mount
  • Enclosure: Metal housing with aluminum bezel
  • Cooling: Fanless design
  • Power: 12V DC in (default); 24V DC in (optional)
  • Front buttons: 5 keys (-, +, Power, Esc, Enter)
