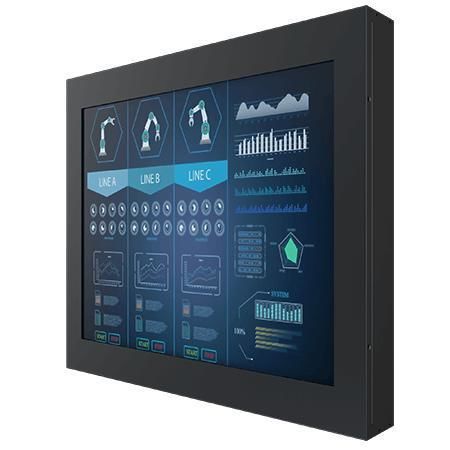

Resistive touch screen monitor R17L100-CHA1OD

outdoorfor industrial machinesfor displays

Product
Winmate 17-inch resistive touch chassis display R17L100-CHA1OD designed for outdoor and industrial applications. High-brightness, sunlight-readable panel with optional UV solar protection film and optional heater solution to extend operation in low temperatures. Supports VESA mounting and resistive touch as default.

Key Features

• Sunlight-readable with 1000 nits panel brightness
• Supports VESA mount for flexible installation
• Operating temperature: -10°C to 60°C (standard)
• Optional heater for extended range: -25°C to 60°C
• Resistive touch screen (default); protection glass without touch available as option
• Optional solar radiation protection with UV film for direct-sun environments

Certifications

• CE
• FCC

Overview
Easy mounting: supports universal wall and flat-surface mounting options for flexible installation across industrial, commercial and outdoor sites.

Clear and vibrant display: high-brightness, sunlight-readable design improves readability under direct sunlight and supports continuous 24/7 visual operation.

Built for outdoor use: optional heater extends low-temperature operation and optional UV film provides solar radiation protection for touchscreen use in outdoor industrial and commercial applications.

Technical specifications

• Model: R17L100-CHA1OD
• Size: 17.0 inches
• Touch / Glass: Resistive Touch Screen (Default); Protection Glass without touch function (Optional)
• Resolution: 1280 x 1024
• Panel Brightness: 1000 nits
• Contrast Ratio: 1000:1
• View Angles: 85, 85, 80, 80
• Display Color: 16.7M Colors
• Active Area: 337.920 x 270.336 mm
• Operating Humidity: 10% to 90% RH, Non-Condensing
• Operating Temperature: -10°C to 60°C (standard); optional -25°C to 60°C with heater solution
• Storage Temperature: -20°C to 70°C
• Certification: CE, FCC
• USB Port: 1 x USB for Touch Screen
• Video: 1 x VGA (Default); 1 x HDMI (Optional); 1 x DVI (Optional)
• Audio: Audio line in (3.5mm) (Optional); 2 x Speaker (Optional)
• Dimension: 398.8 x 349.4 x 51.5 mm
• Mounting: VESA Mount
• Enclosure: Metal Housing with Aluminum Bezel
• Cooling System: Fanless Design
• Accessory (included): 1 x VGA cable; 1 x HDMI cable; 100~240V AC to DC Adapter; Power Cord; Manual; VESA screws (varies by product)
• Optional Accessory: Remote Controller (optional, varies by product)
• Power Rating: 12V DC in; 24V DC in (optional)
• Control Buttons: 5 Keys: -, +, Power, Esc, Enter
