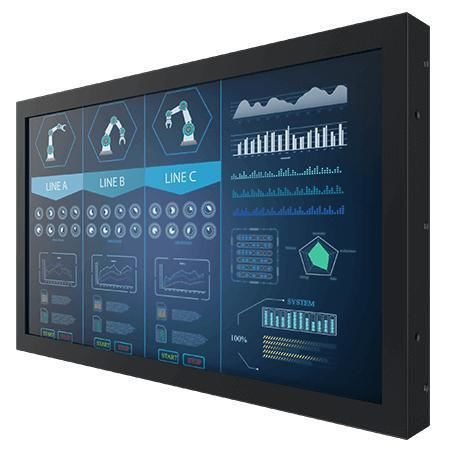

Resistive touch screen monitor W15L100-CHL1OD

for digital signagefor displaysfor HMI interface

Overview
Winmate W15L100-CHL1OD is a 15.6-inch outdoor industrial chassis display featuring a resistive touch interface, a sunlight-readable high-brightness panel and optional UV film and heater for extended environmental operation.

Key Features

• Sunlight-readable high-brightness solution (1000 nits)
• Support for VESA mounting
• Operating temperature: -10°C to 60°C (standard)
• Optional extended operating temperature: -25°C to 60°C with heater solution
• Resistive touch screen (default); protection glass without touch function optional
• Optional solar radiation protection with UV film for direct-sun environments

Easy Mounting
The series supports universal wall and flat-surface mounting options to enable straightforward installation across industrial and commercial sites according to project requirements.

Clear and Vibrant Displays
The high-brightness panel improves readability under direct sunlight and supports continuous 24/7 visual operation for outdoor signage, kiosks and equipment control interfaces.

Built for Outdoor Use
Optional heater and UV film increase operational reliability in extreme conditions, making the touchscreen suitable for varied outdoor industrial and commercial applications.

Certifications

• CE
• FCC

Specifications

• Model: W15L100-CHL1OD
• Brand: Winmate
• Size: 15.6 inches
• Touch / Glass: Resistive Touch Screen (Default); Protection Glass w/o Touch Function (Optional)
• Resolution: 1920 x 1080
• Panel Brightness: 1000 nits
• Contrast Ratio: 800:1
• View Angles: 85,85,85,85
• Display Color: 16.2M Colors
• Active Area: 344.16 x 193.59 mm
• Operating Humidity: 10% to 90% RH, non-condensing
• Operating Temperature: -10°C to 60°C (Optional -25°C to 60°C with heater)
• Storage Temperature: -20°C to 70°C
• Certifications: CE, FCC
• USB: 1 x USB for touch
• Video: 1 x VGA (Default); 1 x HDMI (Optional); 1 x DVI (Optional)
• Audio: Audio line in (3.5mm) (Optional); 2 x Speaker (Optional)
• Mechanical: Dimensions: 372.3 x 225 x 55 mm; Weight: 3.6 kg
• Mounting: VESA Mount
• Enclosure: Metal
• Cooling: Fanless design
• Power: 12V DC in (24V DC optional)
• Control: 5 keys: -, +, Power, Esc, Enter
• Included Accessories: 1 x VGA cable; 1 x HDMI cable; 100~240V AC to DC adapter; Power cord; Manual; VESA screws (varies by product)
• Optional Accessory: Remote controller (optional)
