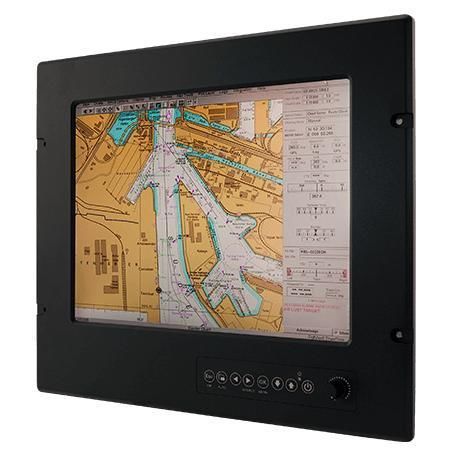

Resistive touch screen monitor R12L600-MRM2

with touchscreenoutdoormarine

Overview
Designed for marine operations, the R12L600-MRM2 is a 12.1" marine display engineered for daytime, dusk and night use. The unit features hyper-dimming control via a front-panel knob for near-linear adjustment of backlight from nearly 0% to 100%. An optional transflective film improves readability in bright outdoor conditions.

Key Features

• 12.1" display, 1024 x 768 resolution
• Resistive touch screen (optional AR/protection glass without touch)
• IP66 aluminium front housing with powder coating (rear IP54)
• 9–36 V DC input via terminal block (default)
• Picture-in-picture (PIP) and multi-video input support
• Front-panel OSD controls and physical dimming knob
• Enhanced shock and vibration resistance for marine use

Certifications

• CE
• FCC

Additional overview
The display is built in a corrosion-resistant aluminium enclosure with a powder-coated bezel to withstand marine environments and impacts. Fanless design lowers heat generation and supports long-duration operation in mission-critical installations. The page notes optional transflective film for improved sunlight legibility and marketing references to extended brightness/temperature claims.

Product details & features (visual / functional)

• Front-panel controls: 8-key OSD and a physical dimming knob for linear backlight control
• Built-in Picture-in-Picture (PIP) for viewing and switching multiple input sources
• Waterproof front face and rugged mechanical construction for shock/vibration tolerance
• Peripheral connectivity: VGA, DVI-D, Composite, S-Video and serial ports

Included accessories

• 1 x User Manual
• 1 x DVI cable
• 1 x VGA cable
• 1 x RS232 serial cable
• 1 x S-Video cable
• 1 x Composite cable

Optional accessories

• Marine Mounting Kit — Model: MMK-12 (Part Number: 99KK12100010)

Control & buttons

• 8-key OSD: Esc / PIP, Auto adjustment, Left, Right/Source, OK / Menu, Up, Down, Power
• 1 x physical dimming knob

Technical specifications

• Model: R12L600-MRM2
• Display size: 12.1 inches
• Resolution: 1024 x 768
• Touch / Glass: Resistive Touch Screen (Default); AR Glass (Optional)
• Panel brightness: 500 nits (panel spec)
• Contrast ratio: 1000:1
• Viewing angles: 89/89/89/89
• Display colors: 16.2M Colors
• Active area: 245.76 x 184.32 mm
• Operating humidity: 5% to 95%
• Operating temperature: -15 ~ 55 °C (spec)
• Shock: 15G, 11 ms duration
• Vibration: 0.7g @ DNV-CG-0339 (Class A)
• IP rating: IP66 front; IP54 rear
• Certifications: CE, FCC
• Serial ports: 1 x RS232 (remote control); 1 x RS232/USB (touch)
• Video inputs: 1 x VGA; 1 x DVI-D; 1 x Composite; 1 x S-Video
• Dimensions (W x H x D): 337 x 293.2 x 70.8 mm
• Cut out: 307 x 253 mm
• Weight: 4 kg
• Mounting: VESA mount / Panel mount
• Enclosure: Metal housing with aluminum bezel; powder-coated front
• Cooling: Fanless design
• Power input: 9 ~ 36 V DC (terminal block)
• Power consumption: 35 W (typical)
