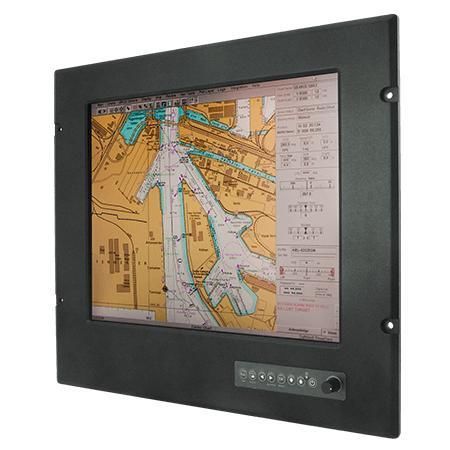

LCD monitor R17L500-MRM1

resistive touch screenmarine17"

Overview
R17L500-MRM1 is a 17-inch marine display designed and tested for shipboard applications to meet DNVGL-CG-0339, IEC60945 and IACS-E10. It features a metal housing with powder coating, IP66 front-side protection, front-panel OSD and a dimming knob providing near 0%–100% backlight control. The unit addresses shock, vibration and continuous-operation requirements for maritime equipment.

Key features

• Dimming knob: linear backlight control from nearly 0% to 100%
• IP66 aluminum front housing with powder coating (rear IP54)
• Accepts 9–36V DC power input
• Resistive touch standard; AR protection glass optional
• Front-panel OSD controls and Picture-in-Picture (PIP) function
• Enhanced shock and vibration resistance; fanless cooling

Product highlights
The display supports hyper-dimming for day, dusk and night operation and can accept an optional transflective film to improve outdoor visibility. Front OSD and a physical dimming knob enable rapid adjustments. Built-in PIP allows simultaneous viewing of multiple input sources and easy switching. Mechanical sealing and construction provide improved shock/vibration resistance and waterproof front-side protection for marine installations.

Connectivity
Video inputs and serial interfaces integrate with existing ship systems: 1 x VGA; 1 x DVI-D; 1 x Composite; 1 x S-Video. Serial: 1 x RS232 for remote control; 1 x RS232/USB for touch screen. Two COM ports available overall.

Certifications

• Designed and tested to DNVGL-CG-0339, IEC60945 and IACS-E10
• CE and FCC

Optional accessories

• Marine Mounting Kit — Model: MMK-17; Part No: 99KK17000010

Technical specifications

• Model: R17L500-MRM1
• Display size: 17.0 inches
• Touch / glass: Resistive Touch Screen (default); AR Glass (optional)
• Resolution: 1280 x 1024
• Panel brightness: 350 nits
• Contrast ratio: 1000:1
• View angles: 85 / 85 / 80 / 80
• Display color: 16.2M Colors
• Active area: 337.920 x 270.336 mm
• Operating humidity: 5% to 95%
• Operating temperature: -15 ~ 55 °C
• Shock: 15G, 11 ms duration
• Vibration: 0.7g @ DNV-CG-0339 (Class A)
• IP rating: IP66 (front), IP54 (rear)
• Serial ports: 1 x RS232 (remote control); 1 x RS232/USB (touch)
• Video: 1 x VGA; 1 x DVI-D; 1 x Composite; 1 x S-Video
• Dimensions (W x H x D): 460 x 410 x 77.2 mm
• Cut out: 405 x 356 mm
• Weight: 8.6 kg
• Mounting: VESA mount / Panel mount
• Enclosure: Metal housing with aluminum bezel, powder coated
• Cooling: Fanless design
• Power input: 9 ~ 36V DC acceptable
• Power consumption: 45W (typical)
• Controls: 8-key OSD (Esc/PIP; Auto; Left; Right/Source; OK/Menu; Up; Down; Power) plus 1 x dimming knob
• Accessories included: User manual, DVI cable, VGA cable, RS232 serial cable, S-Video cable, Composite cable
