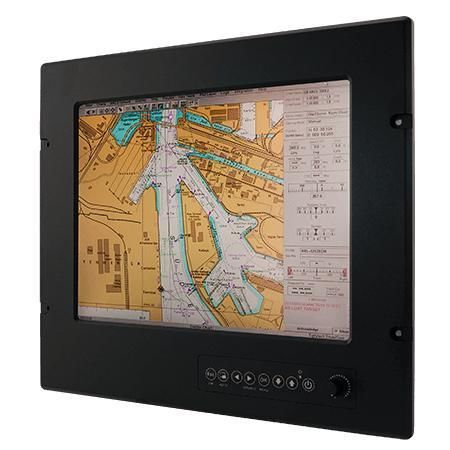

TFT-LCD monitor R15L100-MRC3HB

resistive touch screenmarine15"

Key features

• Dimming knob controls backlight brightness from nearly 0% to 100%
• High-brightness TFT-LCD panel for improved visibility (1000 nits)
• Panel (flush) mount with IP66 aluminum front housing (IP54 rear)
• Wide 9–36V DC input (AC optional)
• Resistive touch screen standard; AR protection glass optional
• Built-in Picture-in-Picture (PIP) and multiple video inputs
• Front-panel OSD and 8-key control plus dimming knob
• Enhanced shock and vibration resistance; fanless metal enclosure

OverviewWinmate R15L100-MRC3HB is a 15.0-inch marine display engineered for shipboard and offshore applications. Designed and tested to marine standards, it delivers readable performance in direct sunlight, salt spray and wide temperature ranges. The unit supports hyper-dimming via a front knob, optional AR glass or transflective film for outdoor readability, and PIP to view multiple sources simultaneously.

Certifications

• CE
• FCC

Design & reliabilityThe display features a marine-grade mechanical design with an IP66-rated front, aluminum bezel, fanless metal housing and reinforced shock/vibration tolerance suitable for mission-critical marine installations. It is built to comply with typical maritime environmental and reliability requirements.

Connectivity & integrationThe unit offers comprehensive I/O for integration with existing navigation and control systems, including VGA, DVI-D, Composite, S-Video and serial ports (RS232). Front-panel OSD and accessible connectors simplify installation and operation.

ApplicationsIntended for navigation consoles, control stations, bridge instrumentation and other shipboard environments where direct-sun readability, broad temperature range and rugged mounting are required.

Technical specifications

• Model: R15L100-MRC3HB
• Brand: Winmate
• Display size: 15.0 inches
• Resolution: 1024 x 768
• Panel brightness: 1000 nits
• Contrast ratio: 2000:1
• Viewing angles: 88/88/88/88
• Colors: 16.2M Colors
• Active area: 304.1 x 228.1 mm
• Touch / Glass: Resistive touch screen (default); AR Glass optional
• Operating humidity: 5% to 95%
• Operating temperature: -15 ~ 55°C
• Shock: 15G, 11 ms
• Vibration: 0.7g @ DNV-CG-0339 (Class A)
• IP rating: IP66 (front), IP54 (rear)
• Certifications: CE, FCC
• Serial ports: 1 x RS232 (remote control); 1 x RS232/USB (touch)
• Video inputs: 1 x VGA; 1 x DVI-D; 1 x Composite; 1 x S-Video
• Mechanical dimensions: 412 x 345 x 79.7 mm
• Cut-out size: 338 x 288 mm
• Weight: 6.5 kg
• Mounting: VESA mount / Panel mount
• Enclosure: Metal housing with aluminum bezel
• Cooling: Fanless design
• Power: Accepts 9 ~ 36V DC input (AC optional)
• Power consumption: 40W (typical)
• Accessories included: User manual; DVI cable; VGA cable; RS232 serial cable; S-Video cable; Composite cable
• Optional accessories: Marine Mounting Kit (Model MMK-15, Part No. 99KK15000010)
• Controls: 8-key OSD (Esc/PIP, Auto, Left, Right/Source, OK/Menu, Up, Down, Power) plus dimming knob
