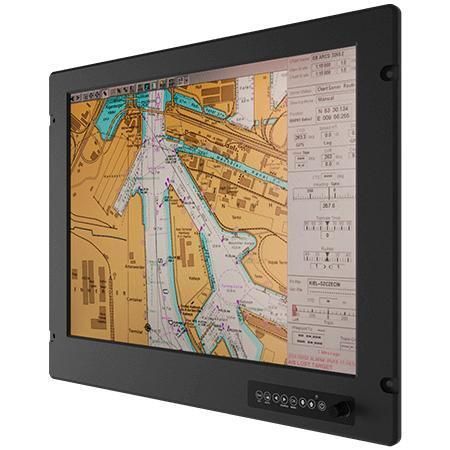

Touch screen monitor R21L100-MRM1

resistive touch screenmarine21.3"

Overview
Winmate 21.3" Marine Display R21L100-MRM1 is a rugged, high-performance display certified for maritime applications (DNVGL-CG-0339, IEC60945, IACS-E10). Designed for safe operation at sea, it features a sunlight-readable front panel, hyper-dimming control, optional transflective film to improve outdoor visibility, and optional AR protection glass.

Key Features

• Dimming knob controls backlight brightness from nearly 0% to 100%.
• IP66 aluminum housing with powder coating design (front side waterproof protection).
• 24V DC isolated power module.
• High-quality touchscreen; AR protection glass optional.
• Front panel OSD control for ease of use.
• Enhanced shock and vibration resistance; rugged mechanical design and fanless cooling for reliability.

Certifications

• Designed and tested to marine standards: DNVGL-CG-0339, IEC60945, IACS-E10.
• Regulatory certifications: CE, FCC.

Highlights / Product Details
Reliable computing compliant with marine standards; in-house reliability tests ensure optimal performance in harsh maritime environments.

Sunlight & Night Operation
Suitable for day, dusk, and night environments. Hyper dimming knob provides linear control of backlight (nearly 0%–100%). Optional transflective film available to further enhance visibility in bright outdoor ambient conditions.

Front Panel Controls and PIP
All controls located on front panel OSD for fast access. Built-in Picture-in-Picture (PIP) function allows viewing multiple input signal sources simultaneously and easy switching between them.

Rugged Design & Weather Resistance
Rugged mechanical design provides enhanced shock and vibration resistance. High power efficiency and low-heat design guarantee stability and longevity required for mission-critical deployment at sea.

Peripheral Connectivity
Feature-rich I/O connectivity consisting of VGA, DVI-D, Composite, S-Video and serial ports for easy integration into existing marine equipment.

Accessories Included

• User manual.
• DVI cable.
• VGA cable.
• RS232 serial cable.
• S-Video cable.
• Composite cable.

Specifications

• Model: R21L100-MRM1
• Display Size: 21.3 inches
• Resolution: 1600 x 1200
• Panel Brightness: 1000 nits
• Contrast Ratio: 1800:1
• View Angles: 89 / 89 / 89 / 89
• Display Color: 16.8M Colors
• Active Area: 432 x 324 mm
• Touch / Glass: Resistive Touch Screen (default); AR Glass optional
• Operating Temperature: -15 ~ 55 °C
• Operating Humidity: 5% to 95%
• Shock: 15G, 11 ms duration
• Vibration: 0.7g @ DNV-CG-0339 (Class A)
• IP Rating: IP66 (front side)
• Certifications: CE, FCC; designed to DNVGL-CG-0339, IEC60945, IACS-E10 marine standards
• Serial Ports: 1 x RS232 for remote control; 1 x RS232/USB for touch screen
• Video Inputs: 1 x VGA; 1 x DVI-D; 1 x Composite; 1 x S-Video
• Dimensions (W x H x D): 519 x 420 x 81.4 mm
• Cut-out: 480 x 396 mm
• Weight: 7.5 kg
• Mounting: VESA mount / Panel mount
• Enclosure: Metal housing with aluminum bezel (powder coated)
• Cooling System: Fanless design
• Power Rating: 9 ~ 36 V DC input acceptable (24V DC isolated power module available)
• Power Consumption: 50 W (typical)
• Control: 8 front keys (Esc/PIP, Auto adjustment, Left, Right/Source, OK/Menu, Up, Down, Power) plus 1 dimming knob
