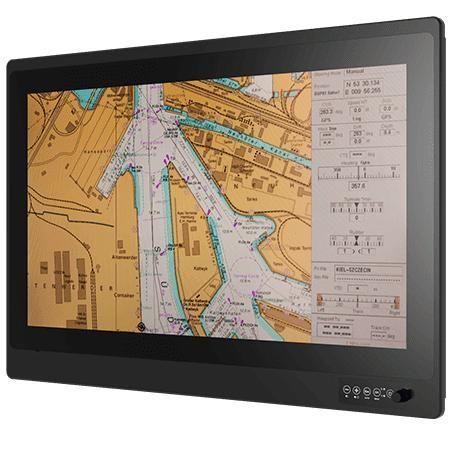

Multitouch screen monitor W24L100-MRL1FP

projected capacitive touchscreenPCAP touchscreenfor displays

Overview
The 24" 4K UHD Marine Display W24L100-MRL1FP by Winmate is a marine-grade 23.8" (3840 x 2160) monitor built and tested to DNVGL, IEC and IACS standards for navigation, control and bridge workstation applications. It features rugged construction, a fanless cooling design and optional AR or impact-resistant glass to withstand harsh maritime environments.

Key Features

• 23.8" 4K UHD (3840 x 2160) with projected capacitive multi-touch (PCAP)
• Multiple video inputs: VGA, DVI-D, HDMI 1.4 / 2.0, DisplayPort
• 24 V DC power input (9–36 V DC acceptable)
• Front-side IP66 protection; fanless cooling

Certifications

• DNVGL (tested to standard)
• IEC
• IACS
• CE
• FCC

Product Highlights
Designed for maritime operation with vibration and shock resistance (vibration 0.7g @ DNV-CG-0339 Class A, shock 15G 11 ms). True-flat glass cover reduces gaps for dust and liquid, facilitating cleaning and integration into bridge workstations.

High pixel density and 540 nits brightness provide clear visuals for situational awareness and operational tasks. PCAP multi-touch supports multi-finger gestures; AR glass is available as an option.

Technical specifications

• Model: W24L100-MRL1FP
• Size: 23.8"
• Resolution: 3840 x 2160 (4K UHD)
• Panel brightness: 540 nits
• Contrast ratio: 1200:1
• Viewing angles: 89/89/89/89
• Display color: 1.07B colors
• Active area: 525.65 x 295.70 mm
• Touch / Glass: Projected capacitive multi-touch (default); AR glass optional
• Operating humidity: 5% to 95%
• Operating temperature: -15 ~ 55 °C
• Shock: 15G, 11 ms
• Vibration: 0.7g @ DNV-CG-0339 (Class A)
• IP rating: IP66 (front side)
• USB: 1 x USB Type A (touch)
• Serial: 1 x RS232 (remote control)
• Video inputs: 1 x VGA; 1 x DVI-D; 1 x HDMI 1.4; 1 x HDMI 2.0; 1 x DP
• Dimensions: 601 x 415 x 73.8 mm
• Cut out: 570 x 360 mm
• Weight: 10.5 kg
• Mounting: VESA mount / Panel mount
• Enclosure: Anodized aluminum bezel
• Cooling: Fanless design
• Power input: 9 ~ 36 V DC (24 V DC typical)
• Power consumption: 70 W (typical)
• Accessories: User manual; mounting clips x12; AC→12V DC adapter; power cord; 3-pin terminal block; open wire cable; VGA/DVI/HDMI/RS232/USB cables
