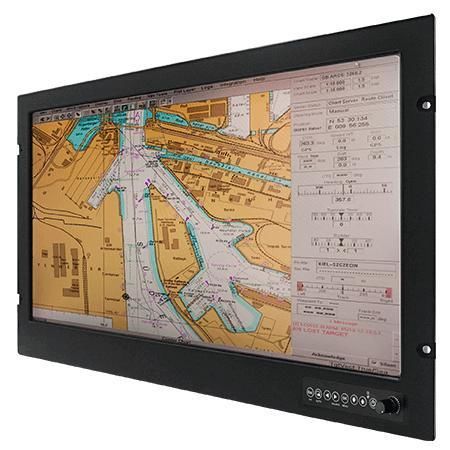

Resistive touch screen monitor W24L100-MRA1HB

marine24"1920 x 1080

Overview
Winmate W24L100-MRA1HB is a 24" high-brightness marine display designed and tested for shipboard and offshore applications. Built to maritime standards (DNVGL-CG-0339, IEC60945, IACS-E10), it provides continuous operation in demanding sea environments with a metal enclosure, fanless cooling and IP66 front protection.

Key Features

• Front-panel dimming knob for linear backlight control from nearly 0% to 100%
• 1000 nits panel brightness for daylight visibility
• IP66-rated aluminum front housing (rear IP54)
• Isolated 24V DC power module (9–36V DC input accepted)
• Optional resistive touchscreen, AR protection glass or transflective film
• Front OSD controls and Picture-in-Picture (PIP) function
• Enhanced shock (15G) and vibration resistance; fanless low-heat design

Certifications & Compliance

• DNVGL-CG-0339
• IEC60945
• IACS-E10
• CE
• FCC

Functions & Controls

• Front OSD keys: Esc/PIP, Auto adjustment, Left, Right/Source, OK/Menu, Up, Down, Power
• 1 x dimming knob for precise brightness adjustment
• Built-in PIP to display multiple input sources simultaneously

Connectivity

• Video inputs: 1 x VGA, 1 x DVI-D, 1 x Composite, 1 x S-Video
• Serial: 1 x RS232 for remote control; 1 x RS232/USB for touch screen
• Two COM ports referenced for integration in ship systems

Accessories (included / optional)

• Included: user manual, DVI cable, VGA cable, RS232 serial cable, S-Video cable, Composite cable
• Optional: high-quality touchscreen, AR protection glass, transflective film, marine mounting kit (MMK-24)

Technical specifications

• Model: W24L100-MRA1HB
• Brand: Winmate
• Display size: 24.0 inches
• Resolution: 1920 x 1080 (Full HD)
• Panel brightness: 1000 nits
• Contrast ratio: 5000:1
• View angles: 89/89/89/89
• Display color: 16.7M colors
• Active area: 531.36 x 298.89 mm
• Touch / Glass: Resistive touch (optional); Protection glass w/o touch (optional)
• Operating humidity: 5% to 95%
• Operating temperature: -15 ~ 55 °C
• Shock: 15G, 11 ms
• Vibration: 0.7g @ DNV-CG-0339 (Class A)
• IP rating: IP66 (front), IP54 (rear)
• Power: 24V DC-in with isolation (certificate); 9 ~ 36V DC input acceptable
• Power consumption: 55 W (typical)
• Dimensions (W x H x D): 593 x 356.7 x 62.7 mm
• Cut out: 566 x 362 mm
• Weight: 9.7 kg
• Mounting: VESA mount / Panel mount
• Enclosure: metal housing with aluminum bezel (powder-coated)
• Cooling: fanless design
