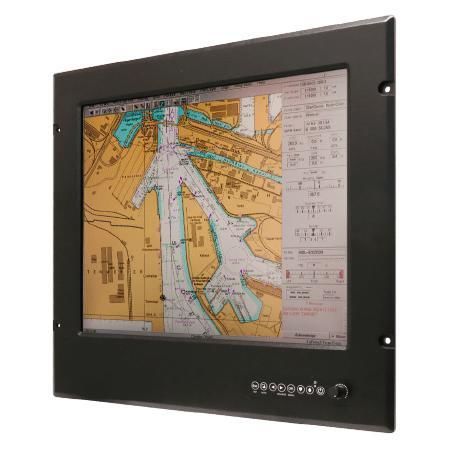

LCD monitor R19L300-MRA1

resistive touch screenmarine19"

Overview
Winmate R19L300-MRA1 is a 19-inch marine display engineered for critical maritime applications. Certified to marine standards and designed for reliable operation in harsh sea environments, it provides hyper-dimming control, optional transflective film for outdoor visibility, front-panel OSD and Picture-in-Picture (PIP) for multi-source monitoring. Rugged metal housing and fanless design ensure long-term stability on vessels.

Key Features

• Hyper-dimming knob: linear backlight control from near 0% to 100%
• IP66 aluminum front housing with powder coating (rear IP54)
• 24 V DC-in with isolation (certificate approval); accepts 9–36 V DC
• Resistive touch screen standard; AR protection glass optional
• Built-in Picture-in-Picture (PIP) and multi-video inputs
• Front-panel OSD controls and dedicated dimming knob for onboard use
• Enhanced shock and vibration resistance; fanless operation

Certifications

• DNV-CG-0339
• IEC60945 (4th)
• IACS E10
• CE
• FCC

Product Details
The R19L300-MRA1 is suitable for day, dusk and night operations thanks to hyper-dimming and optional transflective film that improves readability under strong ambient light. All display functions are accessible via front-panel OSD; PIP enables simultaneous viewing of multiple sources for navigation and monitoring tasks. The unit integrates easily with existing shipboard systems via VGA, DVI-D, Composite, S-Video and serial ports. Its metal enclosure with aluminum bezel and IP-rated front panel provides protection in demanding marine environments.

Technical specifications

• Model: R19L300-MRA1
• Brand: Winmate
• Display size: 19.0 inches
• Resolution: 1280 x 1024
• Touch / Glass: Resistive Touch Screen (default); AR Glass (optional)
• Panel brightness: 400 nits
• Contrast ratio: 1000:1
• View angles: 85/85/80/80
• Display color: 16.7M colors
• Active area: 376.32 x 301.06 mm
• Operating temperature: -15 ~ 55°C
• Operating humidity: 5% to 95%
• Shock: 15G, 11 ms
• Vibration: 0.7g @ DNV-CG-0339 (Class A)
• IP rating: IP66 (front side), IP54 (rear)
• Serial ports: 1 x RS232 (remote control); 1 x RS232/USB (touch)
• Video inputs: 1 x VGA; 1 x DVI-D; 1 x Composite; 1 x S-Video
• Mechanical dimensions: 483 x 444 x 75 mm
• Cut-out: 431 x 393 mm
• Weight: 9.2 kg
• Mounting: VESA mount / Panel mount
• Enclosure: Metal housing with aluminum bezel
• Cooling system: Fanless design
• Power rating: 24V DC-in with isolation (approval by certificate); 9~36V DC input acceptable
• Power consumption: 45W (typical)
• Accessories included: 1 x User Manual; 1 x DVI Cable; 1 x VGA Cable; 1 x RS232 Serial Cable; 1 x S-Video Cable; 1 x Composite Cable
• Front panel control: 8 keys (Esc/PIP, Auto adjustment, Left, Right/Source, OK/Menu, Up, Down, Power) + 1 x dimming knob
