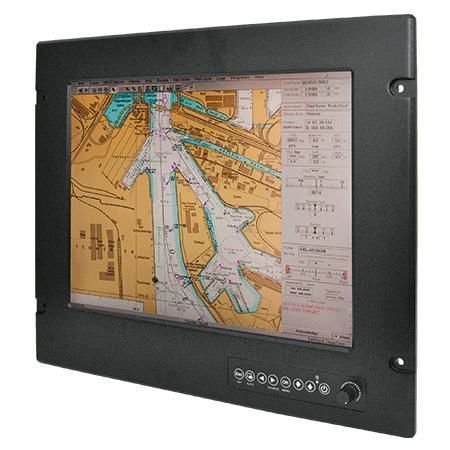

Touch screen monitor R15L600-MRM2

resistive touch screenmarine15"

Overview
Winmate R15L600-MRM2 is a 15.0-inch marine display certified for maritime applications. Built and tested to meet DNV-CG-0339, IEC60945 (4th) and IACS E10 requirements, it is designed for reliable operation in harsh maritime environments with enhanced shock and vibration resistance, IP66 front protection and robust metal housing. The unit accepts 24V DC-in with isolation and supports a wide input range for marine power systems.

Key features

• Hyper-dimming knob: linear backlight control from nearly 0% to 100%
• High-resolution 1024 x 768 panel, 500 nits brightness
• IP66 aluminum front housing with powder coating (rear IP54)
• 24V DC-to-DC input with isolation; accepts 9–36V DC
• Resistive touch screen (default); optional AR glass or transflective film
• PIP (picture-in-picture) and multiple video inputs
• Front-panel OSD controls for easy operation
• Enhanced shock (15G) and vibration resistance (0.7g @ DNV-CG-0339)

Certifications

• DNV-CG-0339
• IEC60945 (4th)
• IACS E10
• CE
• FCC

Peripheral connectivity
Video and control interfaces include VGA, DVI-D, Composite, S-Video and serial ports (RS232) for remote control and touch interface. Designed for straightforward integration into existing bridge, navigation and monitoring systems.

Accessories (included / optional)

• Included: 1 x User Manual, 1 x DVI Cable, 1 x VGA Cable, 1 x RS232 Serial Cable, 1 x S-Video Cable, 1 x Composite Cable
• Optional: Marine Mounting Kit – Model: MMK-15, Part Number: 99KK15000010

Technical specifications

• Model: R15L600-MRM2
• Brand: Winmate
• Display size: 15.0 inches
• Touch / Glass: Resistive Touch Screen (Default); AR Glass (Optional)
• Resolution: 1024 x 768
• Panel brightness: 500 nits
• Contrast ratio: 2500:1
• View angles: 88,88,88,88
• Display color: 16.7M colors
• Active area: 304.1 x 228.1 mm
• Operating humidity: 5% to 95%
• Operating temperature: -15 ~ 55 °C
• Shock: 15G, 11 ms duration
• Vibration: 0.7g @ DNV-CG-0339 (Class A)
• IP rating: IP66 (front), IP54 (rear)
• Certifications: CE, FCC, DNV-CG-0339, IEC60945 (4th), IACS E10
• Serial port: 1 x RS232 for remote control; 1 x RS232/USB for touch screen
• Video: 1 x VGA; 1 x DVI-D; 1 x Composite; 1 x S-Video
• Dimensions: 412 x 345 x 79.7 mm
• Cut out: 338 x 288 mm
• Weight: 6.5 kg
• Mounting: VESA mount / Panel mount
• Enclosure: Metal housing with aluminum bezel (IP66 front)
• Cooling system: Fanless design
• Power rating: 24V DC-in with isolation; 9 ~ 36V DC input acceptable
• Power consumption: 35W (Typical)
• Included accessories: User manual and cables (DVI, VGA, RS232, S-Video, Composite)
