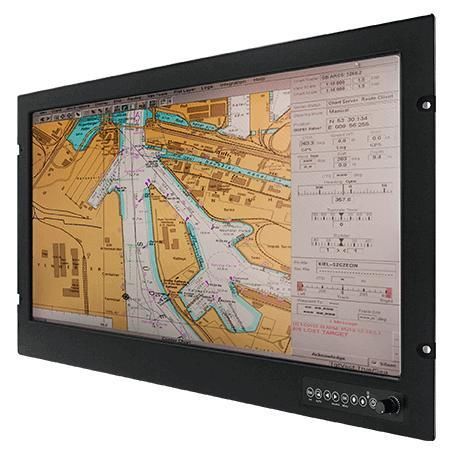

Monitor with touchscreen W24L100-MRA1

resistive touch screenmarine24"

Overview
Winmate Marine Display W24L100-MRA1 is a 24" marine-certified display designed and tested for maritime applications to meet DNVGL-CG-0339, IEC60945 (4th) and IACS E10 standards. It features rugged mechanical design for enhanced shock and vibration resistance, an IP66-rated front aluminium housing with powder coating, a 24V DC isolated power module, high power efficiency and a fanless low-heat architecture for stable, long-term operation in mission-critical marine environments.

Key Features

• Physical dimming knob for linear backlight control from nearly 0% to 100%
• IP66 aluminium front housing with powder coating (rear IP54)
• 24V DC isolated power module (certificate approved); accepts 9–36V DC input
• High-quality resistive touchscreen; optional AR protection glass
• Front-panel OSD controls and quick PIP access
• Enhanced shock and vibration resistance; fanless design
• Built-in Picture-in-Picture (PIP) function

Certifications

• DNV-CG-0339
• IEC60945 (4th)
• IACS E10
• CE
• FCC

Highlights
Designed for reliable operation in bright sun, dusk and night conditions with hyper-dimming capability and optional transflective film for improved outdoor visibility. All primary controls are accessible from the front OSD and physical dimming knob for rapid adjustment during watchkeeping. Comprehensive peripheral connectivity simplifies integration into navigation and bridge systems.

Connectivity & I/O

• Video inputs: 1 x VGA, 1 x DVI-D, 1 x Composite, 1 x S-Video
• Serial / control: 1 x RS232 for remote control; 1 x RS232/USB for touch screen

Accessories

• Standard included: 1 x User Manual, 1 x DVI Cable, 1 x VGA Cable, 1 x RS232 Serial Cable, 1 x S-Video Cable, 1 x Composite Cable
• Optional: Marine Mounting Kit (Model: MMK-24, Part Number: 98K024A00001)

Technical specifications

• Display Size: 24.0 inches
• Touch / Glass: Resistive Touch Screen (Default); AR Glass optional
• Resolution: 1920 x 1080 (Full HD)
• Panel Brightness: 300 nits
• Contrast Ratio: 5000:1
• View Angles: 89/89/89/89
• Display Color: 16.7M Colors
• Active Area: 531.36 x 298.89 mm
• Operating Humidity: 5% to 95%
• Operating Temperature: -15 ~ 55°C
• Shock: 15G, 11 ms duration
• Vibration: 0.7 g @ DNV-CG-0339 (Class A)
• IP rating: IP66 (Front Side), IP54 (rear)
• Certifications: CE, FCC; DNV-CG-0339, IEC60945 4th, IACS E10
• Serial Port: 1 x RS232 for Remote Control; 1 x RS232/USB for Touch Screen
• Video: 1 x VGA; 1 x DVI-D; 1 x Composite; 1 x S-Video
• Dimensions (W x H x D): 593 x 356.7 x 62.7 mm
• Cut out: 566 x 362 mm
• Weight: 9.7 kg
• Mounting: VESA mount / Panel mount
• Enclosure: Metal housing with aluminum bezel (powder coated)
• Cooling System: Fanless design
• Power Rating: 24V DC-in with isolation (certificate approved); accepts 9 ~ 36V DC input
• Power Consumption: 50W (Typical)
• Control / Buttons: 8 keys including Esc / PIP, Auto adjustment, Left, Right/Source, OK/Menu, Up, Down, Power; plus 1 x physical dimming knob
• Optional Accessories: Marine Mounting Kit (Model: MMK-24, Part Number: 98K024A00001)
